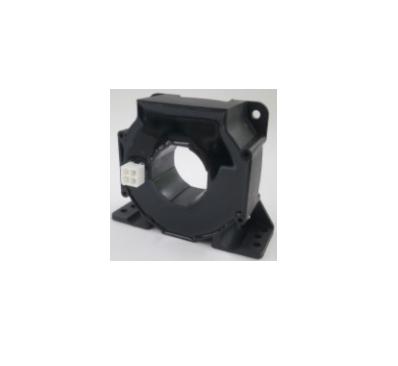

| Rated Primary Current |
DC/AC200A |
| Rated Secondary Current |
100mA |
| Applicable Current |
0～±420A |
| Max. Capable Current |
±420A |
| Nominal CT Ratio |
1:2000 |
| CT Inside Diameter |
φ15.5mm |
| Applicable Frequency |
0～±100kHz |
| Accuracy |
±0.5% F.S |
| Response Time |
Approx. 1μs |
| Power Supply |
±12V～±15V±5% （Bipolar） |
| Power Consumption |
17mA+Output （at±15V） |
| Output Part |
Molex Mini Fit Jr5566 |
| Wiring Method |
+:+12～+15V M:Output -:-12～-15V |
| Rated Voltage |
Less than DC/AC500V for low voltage circuit of coated wires |
| Withstanding Voltage |
AC3500V/1 minute (between output terminal and CT) |
| Insulation Resistance |
More than 100MΩ by 500V insulation tester (between output terminal and CT) |
| Operation Temperature |
-40℃～+85℃, less than 75%RH w/o condensation |
| Dimension |
49.3×52.4×25.9mm |
| Weight |
Approx. 78g |
| Standard |
Compliant with RoHS directive
|
