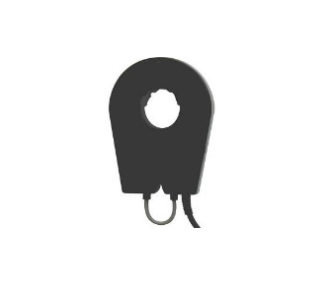

Cảm biến dòng điện xoay chiều CT-41B Multi

Mã sản phẩm: CT-41B |
Thương hiệu: Multi
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Cảm biến dòng điện xoay chiều
Model: CT-41B
Hãng: Multi
Thông tin sản phẩm
Rated Primary Current AC800A(50/60Hz)
Rated Secondary Current 0.2A
Max. Capable Current 800A
CT Inside Diameter φ41mm
Applicable Frequency 50Hz~2kHz
Comparative Error ±0.5% In
Phase Accuracy ±1.0° In
Overcurrent Intensity 12.5kA / 2sec.
Rated Burden (VA) 0.64VA
Open Protection 24V (Zener diode)
Output Part Lead Wire:Approx. 7000mm
Rated Voltage Less than AC600V for low voltage circuit of coated wires
Withstanding Voltage AC2000V/1 minute (between output terminal and Core)
Insulation Resistance More than 100MΩ by 500V insulation tester (between output terminal and CT)
Operation Temperature -20~60℃
Dimension 97×134×42mm
Weight Approx. 600g
Standard Compliant with RoHS directive
