Cảm biến dòng điện xoay chiều CTF-5A Multi

Mã sản phẩm: CTF-5A |
Thương hiệu: Multi
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

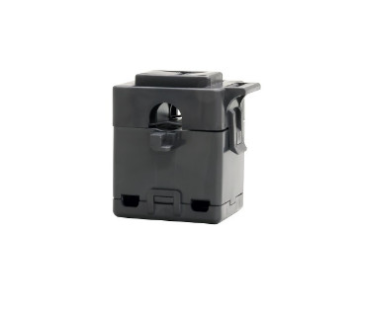

Cảm biến dòng điện xoay chiều
Model: CTF-5A
Hãng: Multi
Thông tin sản phẩm
Rated Primary Current AC5A(50/60Hz)
Applicable Current 0.01A~5A
Max. Capable Current 100A
Nominal CT Ratio 3000:1
CT Inside Diameter φ7.9mm
Applicable Frequency 10Hz~5kHz
Output Example AC16.66mV±1%(5A/10Ω)
Phase Accuracy +1.6°±0.5°(5A/10Ω/50Hz)
+1.3°±0.5°(5A/10Ω/60Hz)
Open Protection 7.5V (Zener diode)
Capable CT Open/Close Approx. 100 times
Output Part M3 Terminal
Rated Voltage Less than AC600V for low voltage circuit of coated wires
Withstanding Voltage AC2200V/1 minute (between output terminal and outer case)
Insulation Resistance More than 100MΩ by 500V insulation tester (between output terminal and outer case)
Operation Temperature -20~60℃, less than 80%RH w/o condensation
Dimension 33×41.3×25.3mm
Weight Approx. 45g
Standard Compliant with RoHS directive
