Cảm biến dòng điện xoay chiều CTF-600A Multi

Mã sản phẩm: CTF-600A |
Thương hiệu: Multi
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

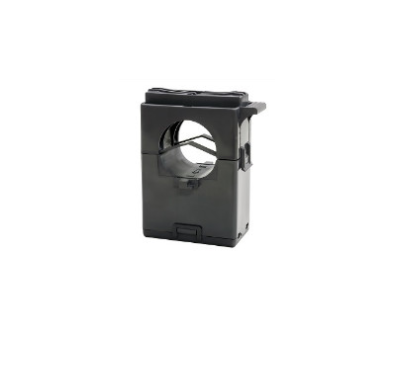

Cảm biến dòng điện xoay chiều
Model: CTF-600A
Hãng: Multi
Thông tin sản phẩm
Rated Primary Current AC600A(50/60Hz)
Applicable Current 1A~600A
Max. Capable Current 800A
Nominal CT Ratio 9000:1
CT Inside Diameter φ35.5mm
Applicable Frequency 10Hz~5kHz
Output Example AC666.6mV±1%(600A/10Ω)
Phase Accuracy ±0.5°(600A/10Ω)
Open Protection 7.5V (Zener diode)
Capable CT Open/Close Approx. 100 times
Output Part M3 Terminal
Rated Voltage Less than AC600V for low voltage circuit of coated wires
Withstanding Voltage AC2200V/1 minute (between output terminal and outer case)
Insulation Resistance More than 100MΩ by 500V insulation tester (between output terminal and outer case)
Operation Temperature -20~60℃, less than 80%RH w/o condensation
Dimension 62.5×94×35.5mm
Weight Approx. 360g
Standard Compliant with RoHS directive
