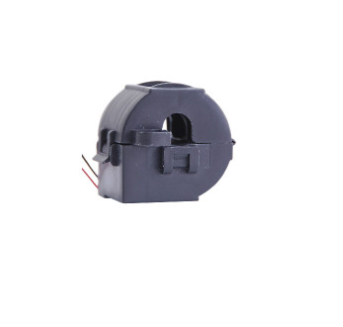

Cảm biến dòng điện xoay chiều CTF-7NF Multi

Mã sản phẩm: CTF-7NF |
Thương hiệu: Multi
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Cảm biến dòng điện xoay chiều
Model: CTF-7NF
Hãng: Multi
Thông tin sản phẩm
Rated Primary Current AC30A(50/60Hz)
Applicable Current 0.1A~30A
Max. Capable Current 50A
Nominal CT Ratio 3000:1
CT Inside Diameter φ7mm
Applicable Frequency 10Hz~5kHz
Output Example AC100.0mV±1%(30A/10Ω)
Phase Accuracy +2.5°±1.0°(30A/10Ω)
Open Protection 7.5V (Zener diode)
Capable CT Open/Close Approx. 100 times
Output Part Lead Wire: Approx. 200mm
Rated Voltage Less than AC600V for low voltage circuit of coated wires
Withstanding Voltage AC1500V/1 minute (between output terminal and outer case)
Insulation Resistance More than 50MΩ by 500V insulation tester (between output terminal and outer case)
Operation Temperature -20~60℃, less than 80%RH w/o condensation
Dimension 25.6×26.8×21.2mm
Weight Approx. 20g
Standard Compliant with RoHS directive
