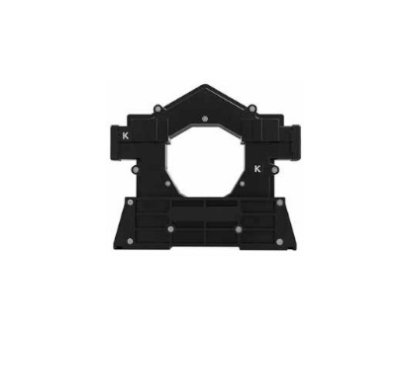

| Rated Primary Current |
AC400A
|
| CT Inside Diameter |
φ66mm
|
| Applicable Frequency |
50/60Hz
|
| Output Characteristic（RL=530Ω） |
Primary Input Current 0.1A / Criterion Output 50mV / Tolerance +5%-10%
Primary Input Current 0.2A / Criterion Output 100mV / Tolerance +5%-10%
Primary Input Current 0.4A / Criterion Output 200mV / Tolerance +5%-10%
Primary Input Current 0.8A / Criterion Output 400mV / Tolerance +5%-10%
|
| Load Resisance |
530Ω
|
| Equilibrium Characteristic |
Less than 30mV（max. residual voltage when AC42mA is piled up to the rated current） |
| Output Part |
M4 Terminal
|
| Applicable Circuit |
Single Phase/Three Phase
|
| Rated Voltage |
Less than AC600V for low voltage circuit of coated wires |
| Withstanding Voltage |
AC2200V/1 minute (between output terminal and CT) |
| Insulation Resistance |
More than 50MΩ by 500V insulation tester (between output terminal and CT) |
| Operation Temperature |
-10～60℃, 45～80%RH w/o condensation |
| Dimension |
182×152×34.7mm
|
| Weight |
Approx. 1850g |
| Standard |
Compliant with RoHS directive
|
