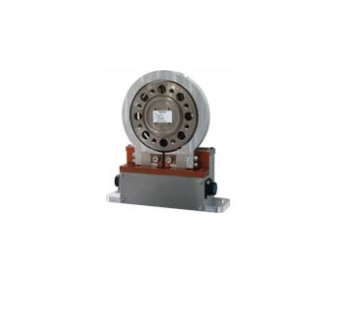

Cảm biến mô men xoắn TMHFB series Minebea

Mã sản phẩm: TMHFB series |
Thương hiệu: Minebea
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Cảm biến mô men xoắn
Model: TMHFB series
Hãng: Minebea
Thông tin sản phẩm
 Specifications
Rated capacity ±100 N・m ~ ±10 kN・m
Safe overload 240 %R.C.
Ultimate overload 400 %R.C.
Rated output 0 V ~ ±10 V
Accuracy of detected value ±0.05 %R.O. (including linearity, hysteresis and repeatablity.)
Maximum rotation TMHFB-100NM ~ -1KNM : 15 000 rpm
TMHFB-2KNM, -3KNM : 10 000 rpm
TMHFB-5KNM, -10KNM : 6 000 rpm
Temp. range, safe -10 ℃ ~ 60 ℃
Temp. effect on zero 0.05 %R.O./10 ℃
Temp. effect on output 0.05 %LOAD/10 ℃
Zero shift by rotation 0.5 %R.O.p-p (at WB=1 kHz)
Mechanical characteristics 100NM 200NM 500NM 1kNM 2kNM 3kNM 5kNM 10kNM
Inertia moment (kg・cm2) 96.94 96.96
97.30
97.50
238.5
238.8
641.8 644.2
Torsional rigidity
(kN・m/rad)
90.32 188.1 834.8
1 715
3 430
5 145
8 577 12 920
Torsional peculiar pitch (kHz) 1.833 2.183 4.255 5.556 4.348 4.651 4.237 4.768
Bending peculiar pitch
Radial direction (kHz) 1.645 1.667 6.452 7.692 6.897 7.143 6.173 6.757
Thrust direction (kHz) 1.481 1.715 5.000 5.556 3.846 4.000 3.289 3.571
Twist angle at rated capacity(°) 0.063 0.061 0.034 0.033 0.032 0.031 0.030 0.044
Accuracy safe bending load (N) 150 300 750 1 500 3 000 4 500 7 500 15 000
Accuracy safe thrust load (N) 130 260 650 1 300 2 600 3 900 6 500 13 000
Class of protection IP54
Material Rotor part : Alloy steel, Stator part : Alluminium alloy
Weight   100NM ~ 1KNM 2KNM / 3KNM 5KNM / 10KNM
Rotor part 3.0 kg 5.2 kg 10.0 kg
Stator part 2.8 kg 3.0 kg 3.5 kg
 Options
φ11, 10-cores shielded cable with connector at the both end.
(Selectable from CAC-169A-10 m / -20 m or CAC-169B-30 m
Specialized transmitter CSA-562B, Power conversion box DBX-001 for connecting with OPT-563B
 Parts No
Parts No. Rated capacity
TMHFB-100NM ±100 N・m
TMHFB-200NM ±200 N・m
TMHFB-500NM ±500 N・m
TMHFB-1KNM ±1 kN・m
TMHFB-2KNM ±2 kN・m
TMHFB-3KNM ±3 kN・m
TMHFB-5KNM ±5 kN・m
TMHFB-10KNM ±10 kN・m
