Cảm biến tiệm cận BPID Z B&PLUS

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Cảm biến tiệm cận BPID Z B&PLUS

Thông tin sản phẩm

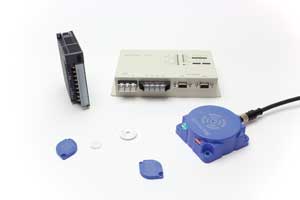

Cảm biến tiệm cận BPID Z B&PLUS

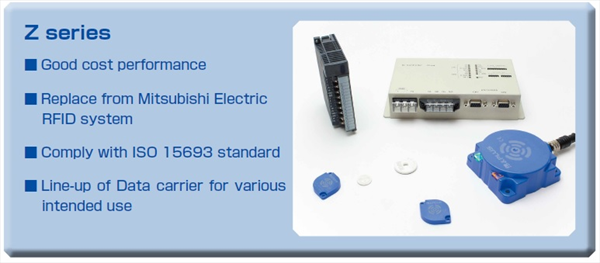

- Good cost performance
- Replace from Mitsubishi Electric RFID system
- Comply with ISO 15693 standard
- Line-up of Data carrier for various intended use
　Data carrier ( Data capacity and Type )
112 byte EEPROM
Writing cycle: 100,000, Reading cycle: unlimited
Data retention time: 10 years
2Kbyte FRAM／Writing cycle: unlimited, Reading cycle: unlimited Data retention time: 10 years
　Interface of Host PLC
－MELSEC-Q
－CC-Link
　Data Processing Time　（Data processing time for reading and writing is shown below.）
Reading　：　200ms(64byte)
Writing 　：　200...300ms(64byte)
　System configlation
　Specification

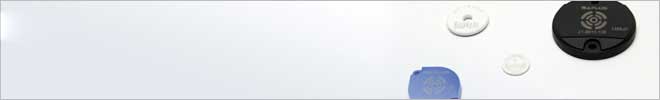

Data carrier
Size Article No. Data
capacity		 Memory type

Mounting
on steel

 Standard Remark
30 x 30 x 6 Z1-AA04-02K 2K byte FRAM Mountable
non-flush		 IOS15693 Compatible type with D-2N
of Mitsubishi Electric		 詳細をご覧いただけます。
φ16 x 0.9 Z1-FA01-128 112byte EEPROM No　 Flexible Data carrier
φ26 x 3.4 Z1-EC02-128 Mountable
non-flush		 Ceramic Data carrier
φ50 x 8.3 Z1-B011-128 Mountable
non-flush		 Long distance Data carrier 15
Influence of surrounding metal 詳細をご覧いただけます。

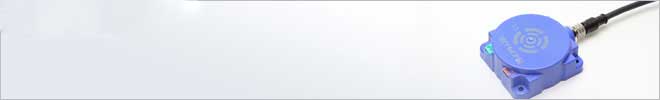

Read/Write head
　
Size Article No. Applicable Data carrier Connection with Processor
80 X 101 X 30 Z3-A010-CN

Z1 series and Data carrier complied ISO15693
(*excluding Z1-EA02-128)

 By the connector cable 詳細をご覧いただけます。
Influence of surrounding metal 詳細をご覧いただけます。
Read/Write head cable
Figure Applicable Processor Article No. Cable length Connection with Processor PDF
M12 Straight Z4-Q001,Z4-Q002 Z7-A001-PU__ 2,5,10,15,20,25m Cable（Terminal) 詳細をご覧いただけます。
M12 Angle Z7-A001-PU__
M12 Straight Z4-C001,Z4-C002 Z7-A005-PU__ D-sub(9pin)
M12 Angle Z7-A006-PU__
Processor
Interface Article No. Channel Remarks PDF
MELSEC-Bus　 Z4-Q001 2CH   詳細をご覧いただけます。
Z4-Q002 ID dedicated instruction of QD35ID 1/2
CC-Link Z4-C001 2CH   詳細をご覧いただけます。
Z4-C002 Compatible communication of AJ65BT-D35ID2
