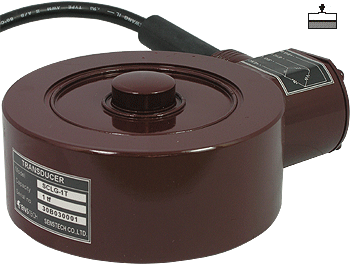

SCLG |
SCLH |
| Rated capacity (R.C) |
500kgf, 1,2,5,10,20,50,100,200tf |
500kgf, 1,2,5,10,20,50tf |
| Rated output (R.O) |
2.0mV/V ±0.1% |
2.0mV/V ±0.1% |
| Nonlinearity |
0.05% R.O. (100,200tf : 0.1%) |
0.02% R.O. |
| Hysteresis |
0.05% R.O. (100,200tf : 0.1%) |
0.02% R.O. |
| Repeatability |
0.03% R.O. (100,200tf : 0.05%) |
0.02% R.O. |
| Zero balance |
±2% R.O |
±2% R.O |
| Terminal resistance input |
350 ±30Ω |
350 ±30Ω |
| Terminal resistance output |
350 ±3Ω |
350 ±3Ω |
| Insulation resistance bridge/case |
2000MΩ |
2000MΩ |
| Temperature range, compensated |
-10 ~ 60℃ |
-10 ~ 60℃ |
| Temperature range, safe |
-10 ~ 70℃ |
-10 ~ 70℃ |
| Temperature effect, on zero balance |
0.05% R.O./10℃ |
0.03% R.O./10℃ |
| Temperature effect, on rated output |
0.05% LOAD/10℃ |
0.03% LOAD/10℃ |
| Excitation recommended |
10V |
10V |
| Safe overload |
150% R.C |
150% R.C |
| Cable length |
Ø7mm 4core, 3m |
Ø7mm 4core, 3m |
