Thông tin sản phẩm

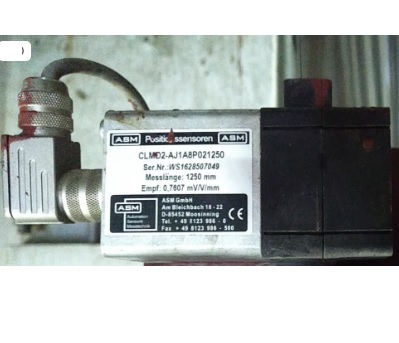

Cảm biến vị trí hãng ASM CLMD2-AJ1A8P021250
Specifications
Output Potentiometer 1 kΩ
Voltage 0... 10 V, 0.5 … 10 V
Current 4 ... 20 mA, 2 or 3 wire
Voltage or current output, programmable (PMUV/PMUI)
SSI
CANopen
SAE J1939
Incremental encoder
Resolution Analog: <0.002 % f.s.
Incremental 10 pulses/mm, 25 pulses/mm
SSI/CAN-Bus: up to 10 µm
Linearity Up to ±0.05 % f.s.
Sensing device Precision potentiometer
Optical encoder
Magnetic absolute encoder
Housing material POM and aluminum
Cable: stainless steel
Protection class IP65 (only with mating connector)
Connection Connector M12
Weight Approx. 400 g
