- Low moisture content measurement at 10 ppm (0.001%) resolution (MS-70)
- Fast and uniform heating with halogen lamp and innovative Secondary Radiation Assist (SRA) technology
- Accuracy verification with Sodium Tartrate Dihydrate (standard with MS-70, MX-50, and MF-50)
- High repeatability with the Super Hybrid Sensor (SHS) technology
- Calibration function for heating temperature (for MS-70 and MX-50 only)
- Five different measurement programs
- Selectable heating patterns
- Translucent window enabling progress check
- Memory function for measurement conditions
- Large bright Vacuum Fluorescent Display
- GLP/GMP/GCP/ISO compliant output
- Quick reference card provided
- Windows Communication Tools WinCT-Moisture (standard with MS-70 and MX-50)
- Displays moisture rate changes over time in a graph (RsFig)
- Quickly and automatically suggests the most suitable heating conditions for first-time samples (RsTemp)
- Calculates measurement data statistics
- Saves the recorded data in CSV format
- Detects other changes to the sample material in addition to moisture rate
- Includes sample data summary
- USB connection is also possible (AX-USB-25P)
Thông số kỹ thuật
|

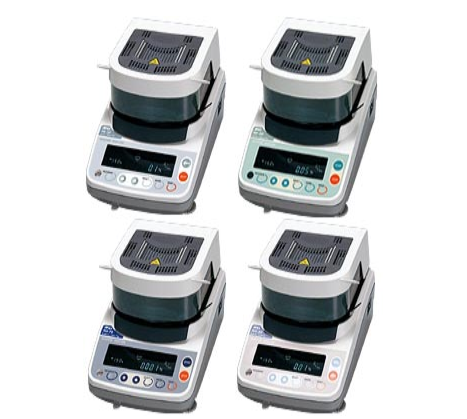

Model
|
MS-70
|
MX-50
|
MF-50
|
ML-50
|
|
Measurement method
|
400 W straight halogen lamp heating system with SRA filter and SHS weighing technology
|
|
Maximum sample weight capacity
|
71 g
|
51 g
|
|
Min. display
|
Moisture content
|
0.001%/0.01%/0.1%
|
0.01%/0.1%
|
0.05%/0.1%/1%
|
0.1%/1%
|
|
Weight
|
0.0001 g
|
0.001 g
|
0.002 g
|
0.005 g
|
|
Repeatability
(Standard deviation)
|
Moisture content (over 1 g)
|
0.05%
|
0.10%
|
0.20%
|
0.50%
|
|
Moisture content (over 5 g)
|
0.01%
|
0.02%
|
0.05%
|
0.10%
|
|
|
Weight
|
0.0005 g
|
0.001 g
|
0.002 g
|
0.005 g
|
|
Drying temperature
|
30 to 200 C°
|
50 to 200 C°
|
|
Measurement unit
|
Wet base / Dry base / Dry content / Ratio / Weight
|
|
Sample pan size
|
Ø85 mm
|
