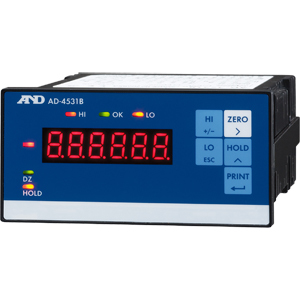

Đầu cân, bộ điều khiển trọng lượng AND AD-4532B, AD-4531B, AD-4531B, AD-4531A, AD-4530, AD-4404
100 times/sec. High speed sampling.
High display resolution to 16,000 counts.
Up to 1 million counts of A/D resolution.
Easy to get judgment by Hi/OK/Lo or HiHi/Hi/Lo/LoLo comparator lights with buzzer.
Foreign material detection input is newly added.
Bar graph shows where the weight of an object falls within the OK range.
Built-in timer controls weighing process by signal from an external photoelectric switch
or by programmable weight recognition function that is beneficial for transparent objects.
Weight, accepted piece, accumulated piece count, name of the object weighted,
and standard deviation can be displayed at the touch of button.
Up to 100 sets of target (OK weight), Hi, Lo and tare can be stored by individual code number.
5 digits of target and 4 digits of upper and lower limit can be set by the front key operation
and number of digit and its location can be customized.
Bright and large 13mm (0.52 inch) florescent display.
1/16000 display resolution capability precise enough for any application.
Sealed keys keep out dust in industrial environments.
100 times/second fast sampling.
Standard current loop output and standard RS-485.
Full digital calibration makes zero and span calibration a breeze.
Complete RFI/EMI protection.
Many features simplify operation.
Display (default) - Stores and recalls up to 100 sets of pre-sets items by individual code number.
-Total number of pieces checked
-Total number of pieces accepted
-Target weight
-Bar graph indicates deviation from target weight
Heavy-duty construction
Easy installation
Simple calibration
11 inputs and 11 open collector output standard (Optional dry contact relay)
Auto zero maintenance with adjustable parameters
Comparator buzzer
Front panel key lock out prevents operator tampering
Fully selectable decimal joint positioning
Programmable gravity compensation
Selectable units of measuring: None, g, kg, t, lbs (USA)
