| Model Name |

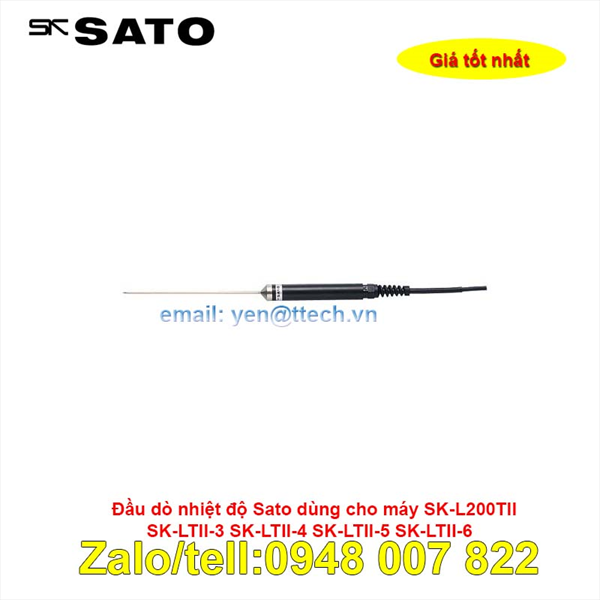

SK-LTII-3 |
SK-LTII-4 |
SK-LTII-5 |
SK-LTII-6 |
| Cat. No. |
8164-00 |
8165-00 |
8166-00 |
8167-00 |
| Sensor |
Thermistor |
| Measuring range |
-40 to 105.0°C |
| Accuracy |
±0.6°C at 15.0 to 35.0°C
±1.5°C at lower than -10°C
±1°C at other than above |
| Dimensions |
Sensing stem (stainless steel)Ø3 x (L)150mm
Grip:Ø18 x (L)100mm
Cord Length: 3.75m
Sensor unit
(W) 25x (H) 62 x (D) 20mm |
Sensing stem (stainless steel)Ø 3 x (L)150mm
Grip: Ø18 x (L)100mm
Cord Length: 5.0m
Sensor unit:
(W) 25 x (H) 62 x (D) 20mm |
Sensing part:Ø 5 x (L)20mm
Cord Length: 3.75m
Sensor unit:
(W) 25 x (H) 62 x (D) 20mm |
Sensing part:Ø 5 x (L)20mm
Cord Length: 5.0m
Sensor unit:
(W) 25 x (H) 62 x (D) 20mm |
| Weights |
about 140g |
about 161g |
about 86g |
about 108g |
| Materials |
ABS resin,PVC resin
Polyacetal resin
Stainless steel |
ABS resin,PVC resin
Polyacetal resin
Stainless steel |
ABS resin,
PVC resin
Stainless steel |
ABS resin, PVC resin
Stainless steel |
| Waterproof properties |
Conforming to JIS C 0920 protection class 5
(Equivalent to IP X5) |
Conforming to JIS C 0920 protection class 7
(Equivalent to IP X7) |
| Accessories |
Test result |
