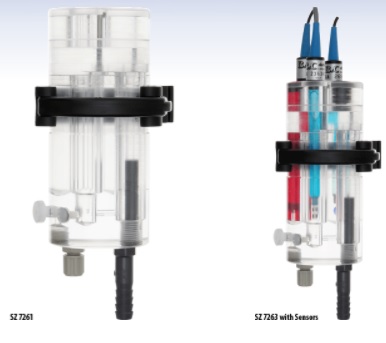

Đầu đo nồng độ Clorine Van London SZ7261 - SZ7263 Flow Cells
The constant head flow cell controls the liquid speed near the measuring electrode over a wide variation of the feeding flow.
The package includes 2 m of 4 x 6 mm plastic tubing and the fitting for the cell connection to the
water being measured.
SZ 7261 Specifications
| Body |
Transparent Epoxy |
| Inlet |
1/8" fitting |
| Overflow outlet |
10 x 14 mm diameter tubing |
| Dimensions |
diameter 55 mm, length 150 mm |
| Fittings |
1/8" for 4 x 6 mm tubing |
| Connection pipe |
2 m length, 4 x 6 mm (included) |
| Water flow |
approx. 10/30 L/hour |
| Temperature |
0/50 ºC |
| Sensors diameter |
12 mm |
| RTD diameter |
5 mm |
SZ 7263 Specifications
| Body |
Transparent Epoxy |
| Inlet |
1/8" fitting |
| Overflow outlet |
10 x 14 mm diameter tubing |
| Dimensions |
diameter 65 mm, length 150 mm |
| Fittings |
1/8" for 4 x 6 mm tubing |
| Connection pipe |
2 m length, 4 x 6 mm (included) |
| Water flow |
approx. 10/30 L/hour |
| Temperature |
0/50 ºC |
| Sensors diameter |
12 mm |
| RTD diameter |
5 mm
|
