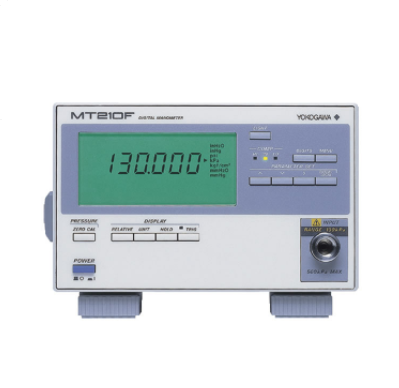

The MT210/210F series of digital manometers, produced by combining YOKOGAWA's best pressure measurement technologies, offers excellent accuracy, reliable operation, and a variety of applications. These measuring tools provide the perfect solutions for a wide range of technologies.
High accuracy
±0.01%, with a maximum allowable input of 500 kPa (130 kPa-range model)
A wide range of pressures:
Offering low differential pressure of 1 kPa to a high gauge pressure of 3000 kPa
Three measurement modes:
Normal speed, medium speed, and high speed (MT210F series)
Options:
D/A conversion output, comparator output, and external trigger input (optional)
GP-IB and RS-232 interfaces, l12-V DC power supply, lBattery operation (optional)
High performance, high resolution
The MT210/210F series features high performance, and a high, basic accuracy of ±0.01% thanks to the YOKOGAWA-original silicon resonant sensor.
High allowable input pressure
The maximum allowable input pressure is as high as 500 kPa (such as in the 130 kPa-range model). Now you don't have to worry about sensor breakdown due to overrange pressure input.
Traceable to Japanese national standards
Minimal effect of temperature changes
The silicon resonant sensor is highly immune to environmental discrepancies such as temperature changes.
A variety of measurement objectives
Supports high-speed measurement
The MT210F series has been added to our range or pressure measuring instruments in order to support high-speed measurements. These measurements, such as the observation of transient-response characteristics, include relatively fast pressure changes.
A wide range of models
You can choose a model to fit your application from models with different pressure types/gauges and absolute and differential pressures. Also choose among models with pressure ranges from the low differential pressure of 1 kPa to the gauge pressure of 3000 kPa.
Applicable to both gases and liquids
Never be bothered by the labor of switching between models. The MT210/210F series can measure both gases and liquids. With the new differential-pressure models you can measure liquids that you couldn't measure before with the MT110-series differential-pressure models.
Ease of systemization
D/A conversion output The D/A-converted signal of a measured value is output through an external terminal. This feature permits you to easily send data to your measurement system or recorder
Observation examples of D/A conversation output
Differences due to the measurement mode, where the normal-speed waveform is when the Moving-average option is turned off
