Thông tin sản phẩm

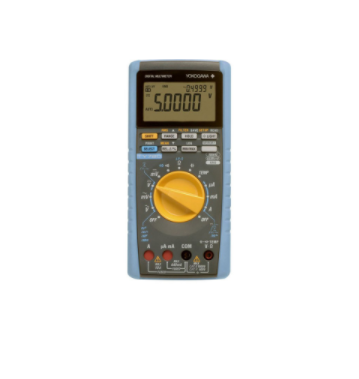

The TY720 Digital Multimeter is a 4.5-digit, 50,000-count dual display RMS meter with a 51-segment bar graph display. The TY720 multimeter measures Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, and Low Power Resistance.

Thông số kỹ thuật


Measurement Function DC voltage, AC voltage, DCV+ACV, DC current, AC current, DCA+ACA, resistance, frequency, temperature, capacitance, duty cycle, decibel calculation, continuity check, diode test, low-power resistance
For AC voltage/current, RMS/MEAN detection can be switched .
For AC voltage/current, the low-pass filter can be turned on/off.
Additional Functions Data hold/auto hold/peak hold, range hold, maximum/minimum/average values resistance, capacitance zero, relative and percentage value calculation, manual-mode memory, logging-mode memory, auto power off, backlight (white LED)
Display 5-digit LCD: 7-segment
Digital display: Main display; [50,000] counts
Sub-display; [50,000] counts
Bar graph display: 51-segment
Polarity indicator: “-” appears automatically when the polarity is negative
Overrange indicator: “OL”
Features
  • Highest Precision
  • Basic accuracy 0.020%
  • True RMS measurement
  • New Functions for Electronic and Industrial Use
  • Simultaneous measurement and display of DC and AC
  • Switchable RMS/MEAN detection
  • Low-pass Filter (LPF)
  • AC50mV range
  • Lo-Power resistance measurement TY720 only
  • Full Support for Data Management
  • A large-capacity logging-mode memory
    TY720: 10,000 data
    TY710: 1,000 data
  • USB communication, application software (Optional DMM communication package)
  • Safe Design and Wide Temperature Range for Harsh Use
  • Conforms to safety standards EN61010-1 1000V CAT., 600V CAT.
  • Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
  • Operating temperature range -20 to +55C
  • Storage temperature range -40 to +70
  • Closed Case Calibration
  • 3-year Warranty
