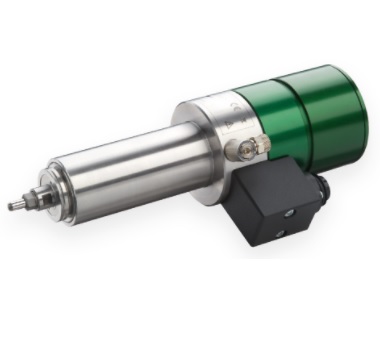

Động cơ SYCOTEC AC MOTOR SPINDLE Sycotec 4041 HY-ESD
Motor system
3 Phase asynchronous motor
Speed range
5,000 - 50,000 rpm
Motor protection
PTC-100°C
Bearing system
3 x Hybrid, lifetime lubrication
Chuck clamping range
Ø 1.0 – 6.35 mm (incl. 1/8" + 1/4")
Tool change
Pneumatic 5 – 6 bar
Cooling system
Cooling via clamping bracket
Protection category
IP 54
Protected against dirt and cooling lubricant
Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm)
Housing material
Stainless steel
Inverter recommendation
e@syDrive® 4625
e@syDrive® 4626
e@syDrive® TV 4506
Highlights
Electrostatic discharge
