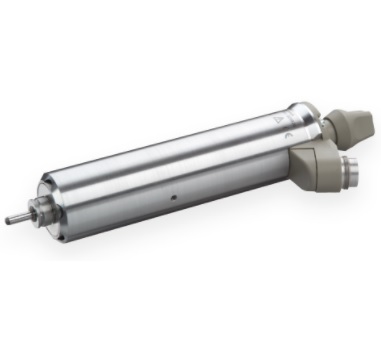

Động cơ SYCOTEC HF MOTOR SPINDLE - 4025 HY
Applications
Drilling, Milling, Grinding, Engraving
Motor system
3 Phase asynchronous motor
Speed range
5,000 - 60,000 rpm
Bearing system
2 x Hybrid, 1 x Steel, lifetime lubrication
Chuck clamping range
Ø 0.3 - 4.0 mm (incl. 1/8")
Tool change
Manual (clamping knob)
Cooling system
Self-ventilation fan (reduced output power) / via clamping bracket
Protection category
IP 20
Protected against dirt and cooling lubricant
no
Housing material
Stainless steel
Inverter recommendation
e@syDrive® 4310 (IP 00)
e@syDrive® 4320 (IP 00)
e@syDrive® 4624
e@syDrive® TV 4504
