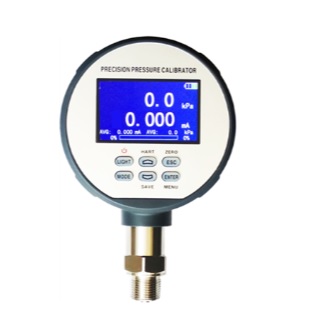

Đồng hồ áp suất chuẩn điện tử KDS DPC130
Pressure overload: When the pressure measurement value exceeds 110%FS, overpressure is displayed and an alarm is given.
u Temperature measurement: (0~50) ℃; resolution 0.1℃; accuracy: ±0.5℃.
u Operating environment:
u a. Ambient temperature :(-5~50)℃;
u b. Relative humidity: ＜95% (no condensation);
u c.Atmospheric pressure :(86 ~ 106) kPa.
u Storage temperature :(-30 ~ 80) ℃.
u Display: 2.8-inch color screen, 5-digit display, Chinese and English can be switched.
Power supply: built-in 3.7v lithium battery power supply, with 5V power adapter.
u Auto power-off function: turn off the auto power-off function and set the auto power-off time in the system information.
u Communication serial port configuration: baud rate: 9600; check bit: none; data bit: 8; stop bit: 1;
u Dimension: header Φ 115 mm x 45 mm; total length: 185 mm.
u Weight: about 0.5kg.
