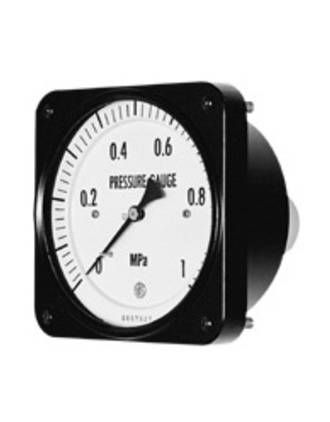

- This is a spuare type, exclusively panel-mounting type pressure gauge in which the eiastic deformation(movement) of the Bourdon tube is transmitted to the indicator.
- This pressure gauge indication is easy to read and pressure gauge itself is easy to use.
- As the case is square, this pressure gauge occupies less space when compared with a round type, and is appropriate for arranging many gauges on the same panel.
- Two methods of gauge attaching exist: attaching bolts and attaching metal fittings. An appropriate method for application can be selected.
- In case of selecting pressure gauge, choose the pressure range which can be used in between 30-65% of full scale,so that the gauge can give its full capacity.
- Also should be confirmed whether the wetted parts material is suit able for the fluid or not.
