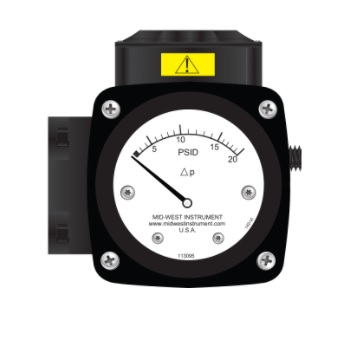

Đồng hồ đo chênh áp kiểu màng hãng Mid-West Instrument

Specifications / Configuration

• Dial Sizes available: 2-1/2”, 3-1/2”, 4-1/2” and 6” Diameters
• Dial Scale Ranges: 0-20” H2O to 0-25 PSID (0-50 mbar to 0-1.7 bar)
• Differential Full Scale Ascending Accuracy ±3/2/3% (ASME B40.1 Grade B)
• Available in a Variety of Dial Scales: Bar, Mbar, kPa, Kg/Cm2, Dual Scale etc.
• Working Pressures up to 3000 PSIG (200 Bar)
• Operating Temp -40°F to +200°F (-40°C to +93°C)
• Weather Protection NEMA 4X/IP65
• Material of Construction of Body - Aluminum, Brass, 316/316L Stainless Steel, Aluminum/Bronze & Monel(Wetted Part)
• Internal wetted parts-316 Stainless Steel, Ceramic Magnet, Teflon Guide Bushings and Monel (Dependent on model chosen)
• Multiple instrument process connection size and locations available
• Elastomers (O-ring and Diaphragm Materials) Buna-N, Viton, Ethylene Propylene
• For complete specifications see: SPECIFICATIONSHEET_142.pdf
