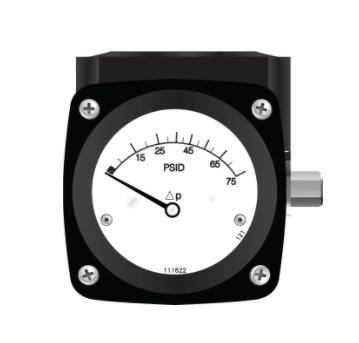

Đồng hồ đo chênh áp kiểu Piston hãng Mid-West Instrument

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Đồng hồ đo chênh áp kiểu Piston hãng Mid-West Instrument

Thông tin sản phẩm

Đồng hồ đo chênh áp kiểu Piston hãng Mid-West Instrument


Product Features/Benefits

  • Rugged Piston Type Design Sensing Element
  • Glass Reinforced Thermoplastic Dial case (Panel Mountable)(Anodized Aluminum Dial Case Option available contact sales for more information)
  • Weather Resistant & Corrosion Resistant
  • Shatter Resistant Lens
  • Over-Range Protection, High over Low and Low over High
  • Terminal Strip Switch & Transmitter options
  • 5 Year Warranty
  • For complete model details See Bulletin_124.pdf
  • Installation and Operation Manual See Bulletin: IOM_124.pdf

Specifications / Configuration

  • Dial Sizes available: 2-1/2”, 3-1/2”, 4-1/2” and 6” Diameters
  • Differential Full Scale Ascending Accuracy ±3/2/3% (ASME B40.1 Grade B)
  • Dial Scale Ranges: 0-5 PSID to 0-400 PSID (0-0.35 to 0-27 bar)
  • Available in a Variety of Dial Scales: Bar, Mbar, kPa, Kg/Cm2, Dual Scale etc.
  • Working Pressures up to 10,000 PSIG (689 Bar)
  • Proof Pressure: 20,000 PSI
  • Operating Temp -40°F to +200°F (-40°C to +93°C)
  • Weather Protection NEMA 4X/IP65
  • ¼-20 Mounting Holes in back of gauge body (Std. on switch and transmitter units)
  • Material of Construction of Body - 316/316L Stainless Steel (Wetted Part)
  • Internal wetted parts-316 Stainless Steel, Ceramic Magnet
  • Multiple instrument process connection size and locations available (Dependent on Dial scale)
    Non-electrical: Hi Port on Right Std
    Electrical: High Port on Left Std
  • O-ring Materials: Buna-N, Viton, and Ethylene Propylene
  • For complete specifications see: Specificationsheet_124.pdf
