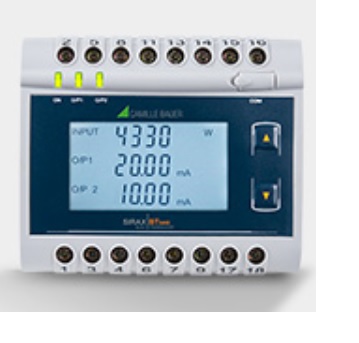

Đồng hồ đo công suất điện CAMILLE BAUER SIRAX BT5400
Transducer for Active, Apparent, Reactive Power, Phase Angle and Power Factor
The SIRAX BT5400 is used to measure and convert Active, Apparent, Reactive Power, Phase Angle & Power Factor of a Single phase or Three phase AC System with balanced or unbalanced load into an proportional DC current or voltage output signal.
Functions
- Connection type: One-phase, 3-phase 3-wire balanced or unbalanced load or 3-phase 4-wire balanced or unbalanced load
- Measuring input for power
- Nominal voltage up to 500 V, nominal current 1 / 5 A
- 2 configurable analog outputs linear or kinked in a unipolar range of
0…20 mA / 4…20 mA or 0…10 V or
a bipolar range of -20…0 mA or -10…0…+10 V
- Quick on-site programming using push buttons or via CB-Configurator software
- Simple on-site device operation
- Clear and well readable representation of measured data via LCD display
- Flexible communication and remote readout via integrated Modbus RTU interface
