 Specifications |
| Model |

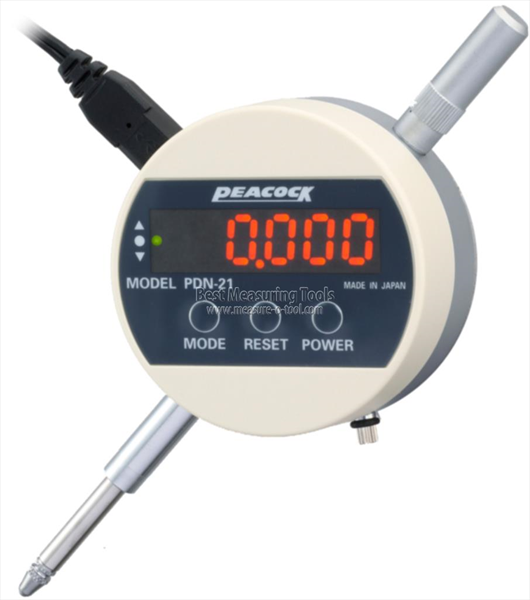

PDN-21 |
PDN-51 |
| Range |
20mm |
50mm |
| Resolution |
Convertible 0.01mm and 0.001mm ( Set 0.001mm at the time of shipment ) |
Accuracy
(excluding quantized error) |
0.001mm Display: 0.003mm
0.01mm Display: 0.01mm |
0.001mm Display: 0.004mm
0.01mm Display: 0.01mm |
| Measuring force |
Less than 1.5N
Without spring: less than 0.31N |
Less than 3.1N
Without spring: less than 1.0N |
| Response speed |
1000mm/sec |
| Contact point |
X-2 ( M2.5×0.45 ) |
X-9 ( M2.5×0.45 ) |
| Display rotation |
280º |
| Operating temperature |
0 - 40ºC |
Functions |
 Convertible 0.01mm and 0.001mm |
| Judgement OK, ±NG ( OK=Green ±NG=Red ) |
| Counting direction Conversion |
|
| Data output |
RS-232C |
| Power supply (AC Adapter) |
AC100 - 240V ±10% 50/60Hz |
| Accessories |
AC Adapter |
AC Adapter Finger Lever No.LL-50
|
Options |
| for PDN-21 |
for PDN-21/51 |
| Flat Back |
No.GB-3D20 |
Input adapter |
No.IF-21 |
| Release |
No.RE-4 |
Foot switch |
No.FW-1 |
| Finger Lever |
No.LL-D20 |
Change the measuring force |
| Lifting Lever |
No.LL-PD |
|
|
