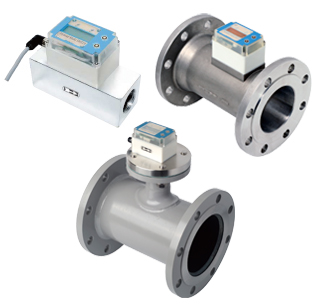

Đồng hồ đo lưu lượng Hybrid Multi Delta Oval

Mã sản phẩm: Hybrid Multi Delta |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Đồng hồ đo lưu lượng
Model: Hybrid Multi Delta
Hãng: Oval

    Yêu cầu giá tốt:

    0984.843.683.

    Email: info@ttech.vn

Thông tin sản phẩm
Model All-in-one unit Insertion type
Nominal size 25, 40, 50, 65, 80, 100, 150mm For 150mm
Connection standard 25 to 50 mm: Screw-mounted
65 to 150 mm: Flange
Flange
Flow range *
  m3/h(normal)
  at 0.6MPa
25mm:0.6 to 420, 40mm:1.2 to 1008
50mm:1.8 to 1680,65mm:3 to 2520
80mm:4.2 to 3360,100mm:7.2 to 5880
150mm:16 to 13440
16 to 13440
Body material 25 to 50mm: A5052, 65 to 100mm: SCS13A  150mm: STPG SUS304
Operating temp. range 0 to 50°C
Max. operating pressure 0.78MPa
Accuracy ±5% or reading ±0.05% of maximum flow
Power supply DC-powered
Configuration Non-explosionproof configuration, IP65
Output Pulse (flowrate, alarm), analog (a choice among flowrate, temperature and pressure)
Applicable fluids Compressed air, nitrogen
