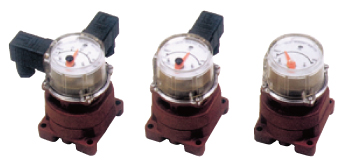

Đồng hồ đo lưu lượng Valve Position indicator Oval

Mã sản phẩm: Valve Position indicator |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Đồng hồ đo lưu lượng
Model: Valve Position indicator
Hãng: Oval

    Yêu cầu giá tốt:

    0984.843.683.

    Email: info@ttech.vn

Thông tin sản phẩm
Model PI type NPI type
(small size)
Type PI45 PI46 PI52 PI53 NPI45
Connection Only hole, Hole with O-ring, Rc screw
Flow range (L/min) 0.083 to 8 0.17 to 20 1.33 to 50 2.5 to 100 0.083 to 8
Applicable cylinder volume (L) 0.05 to 10 0.16 to 32 0.39 to 78 0.7 to 140 0.05 to 10
Operating temp. range –10 to +80°C –10 to +80°C
Max. operating pressure Standard type: 13.73 MPa, High pressure type: 20.58 MPa 13.7MPa
Indication accuracy 0 to +3% (Flow accuracy: Within ±0.3% of reading)
Output Open/Close and Opening travel signal output (option)
Body material FC250, FCD450 FC250
Configuration Non-explosionproof * Non-explosionproof
Applicable fluids Hydraulic operation oil: ISO VG32, VG56 or equivalent
