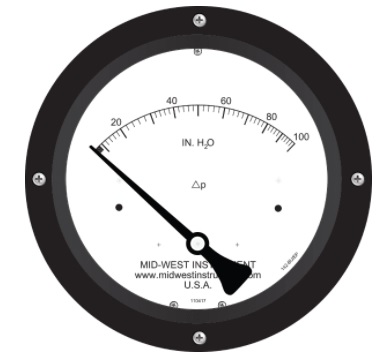

Đồng hồ đo mức bồn bể bằng chênh áp hãng Mid-West Instrument

Specifications / Configuration

• Dial Sizes available: 2-1/2”, 3-1/2”, 4-1/2” and 6” Diameters
• Dial Scale Ranges: 0-20” H2O to 0-600” H2O
• Differential Full Scale Descending Accuracy ±2% (ASME B40.100)
• Available in a Variety of Dial Scales: LOX, Ar, O2, N2, LBS. CO2, CM H2O, MM H2O, KGS, LNG, etc.
• Working Pressures up to 1000 PSIG (69 Bar)
• Operating Temp -40°F to +200°F (-40°C to +93°C)
• Weather Protection NEMA 4X/IP66
• Material of Construction of Body - Aluminum, Brass, 316/316L Stainless Steel (Wetted Part)
• Internal wetted parts-316 Stainless Steel, Ceramic Magnet and Teflon Guide Bushings
• Multiple instrument process connection size and locations available
• Elastomers (O-ring and Diaphragm Matertials): Buna-N, Viton, Ethylene Propylene.
• For complete specifications see: Specificationssheet_114.pdf
