Thông tin sản phẩm

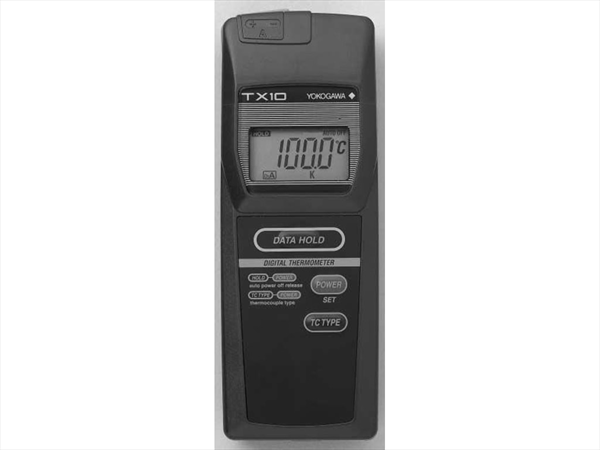

Thiết bị đo nhiệt độ Yokogawa TX10-01, TX10-02, TX10-03


Number of Input channel 1
Measuring Range Type E: -200 to 700°C (-328 to 1292°F)
Type J: -200 to 1000°C (-328 to 1832°F)
Type K: -200 to 1372°C (-328 to 2501.6°F)
Type T: -200 to 400°C (-328 to 752°F)
Resolution -200.0°C to 199.9°C: 0.1°C
200°C or above: 1°C
Accuracy +200 °C or above, or when 1°C resolution is set ±(0.2% of rdg + 1°C)
-100.0°C to 199.9°C ±(0.1% of rdg + 0.7°C)
-200.0°C to -100.1°C ±(0.1% of rdg + 1.0°C)
Temperature Coefficient ± (0.015% of rdg +0.06°C)/°C
Approx. Measurement Interval 1 sec
Display Item HOLD, °C, ch A, TC type K, J, E, T, Battery alarm
Other Functions Auto power-off, battery alarm
Display LCD
Operating Temperature 0 to 50 ºC
Humidity 80% RH (no condensation)
Power Requirements Two AA-size alkaline dry batteries (LR6)
Battery Life About 450 hours
Drip-proof Construction Conforms to IP54 (dust-proof and drip-proof requirements of IEC529)
Compliance with Standards EMC Standards
EMI (interference signal): EN55011;1998, EN61326-1;1998+A1 (Class B, Group 1)
EMS (immunity): EN50082-1;1997, EN61326;1998+A1
Approx. Height 151 mm
Approx. Width 56 mm
Approx. Depth 33 mm
Approx. External Weight 180 g
Supplied Accessories Two AA-size alkaline dry batteries (LR6) and instruction manual
Optional Accessories Extension Cable 5 m (2459 21)/10 m (2459 22)
Soft case (930 12)
Temperature Probes (for K type thermocouple)
Rounded end probe (900 20B, 900 21B, 900 22B)
Needle probe (900 23B, 900 24B)
Surface probe (900 30B, 900 31B, 900 32B, 900 33B)
Bead TC (2459 07)
Waterproof Cover (5-per package) (930 11)
