| Specifications |

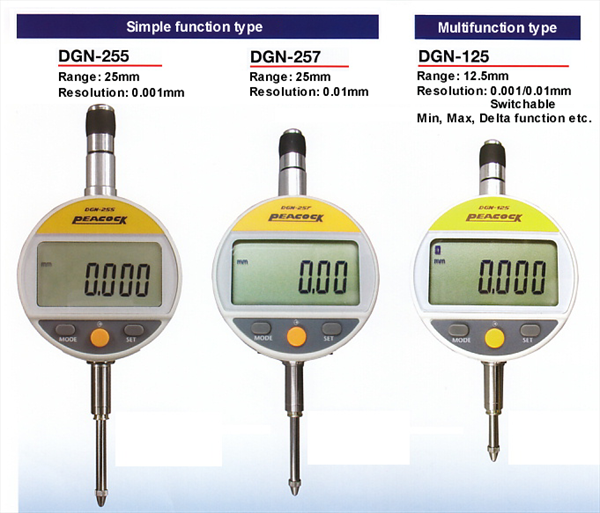

| Type |
Simple type |
Multifunction type |
| Model No. |
DGN-255 |
DGN-257 |
DGN-125 |
DGN-125B |
| Range |
25mm |
25mm |
12.5mm |
| Resolution |
0.001mm |
0.01mm |
0.001/0.01mm Switchable |
Indicator error (excluidng
quantized error) |
0.003mm |
0.01mm |
0.003mm |
| Display (mm) |
6 digit 999.999 with (- symbol) |
6 digit 9999.99 with (- symbol) |
6 digit 999.999 with (- symbol) |
Measuring force
(upright position) |
less than 1.2N |
less than 1.0N |
| Mounting Method |
Suppoerted by Ø8mm Stem ( Lug Back No. GB-1DX is optional ) |
| Contact Point |
SR2.0mm with Steel ball M2.5 x 0.45 L=7mm No. X-14 |
| Operating Temperature |
+5℃ to 40℃ |
| Common Specifications |
 Battery |
CR-2032 |
| Data Output |
RS-232C (by cable KB-232C or KB-USB) |
| Change Polality |
Pusing up the Spindle |
| Change Unit |
mm / inch |
| Low Battery |
Light up "B" |
| Display rotatable |
Max 270° |
| Power Saving |
Automatic Switch off |
|
for only
DGN-125
DGN-125B |
| Minimum Value |
Hold the Minimum Value (Min) |
| Maxumum Value |
Hold the Maximum Value (Max) |
| Measurement Value |
0.001mm/0.01mm Selectable |
| Min + Max |
Hold the Minimum Value + Maximum Value (Delta) |
| Multiplication display |
Calucurated display at set multiple (Mult) |
| Judgment |
LED display -NG OK +NG (Tol) |
|
| Options |
| Spindle Pull-up |
Lifting Lever (LL-205), Finger Lever (LL-D20), Release (RE-205) |
| Back with Lug |
Mounting Vertical/Horizontal direction (GB-1DX) hole Ø6.5mm |
| Contact Point |
All the replaceable Contact Point for Dial Gauges can be installed |
| Signal Cable |
RS-232C Cable (KB-232C), USB Cable (KB-USB) |
| Input Adapter |
A Data input to EXCEL (IF-21B) |
|
for only
DGN-125B |
| Wireless communications |
Bluetooth4.0 type, Working distance is within 5m. |
|
System requirements windows 10 uploaded |
|
