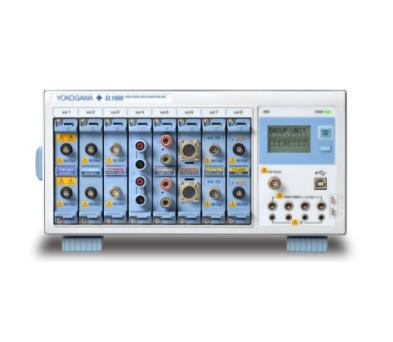

The SL1000 is a modular data acquisition system that delivers independent, isolated channel hardware at high speeds up to 100 MSamples per channel, with no compromise in bit resolution, memory depth, or data streaming performance. Choose from a wide variety of I/O modules for electrical and physical sensor signal measurements to meet the needs of any medium channel count application.
Supports parallel testing: Perform measurements with up to four simultaneously independent sample rates
Fast Transfer and Storage
Stream data to PC via high speed USB 2.0 or 1000BASE-T Gigabit Ethernet²
Real time display on a PC (GIGAZoom engine)³
Fast Acquisition
Up to 100 MS/s on all channels (10 ns sampling interval)
New 100 MS/s 12-Bit 1 kV¹ isolation module with 20 MHz bandwidth
Stream data to a PC hard disk or the SL1000's internal hard disk² in real time (at speeds of 1.6 MS/s = 100 kS/s x 16ch)³
Easy to use
Easy to use Standard Acquisition Software
Quick and Intuitive operation means that you can start measuring immediately
Setup Wizard guides you through detailed settings
Can operate "Standalone"
Store data directly on the SL1000
Wide Library of Plug-In Modules
Eight module slots are available in each unit
Select from twelve different plug-in modules
- In combination with 10:1 probe (for isolated BNC input) model 700929
- Optional
- Speed depends on PC performance and measuring conditions.
