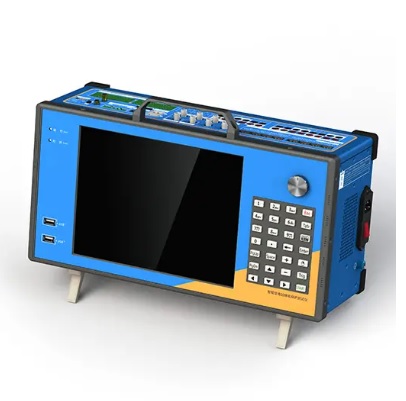

| IEC 61850 communication port |
| Function |
Any configuration of IEC 61850 9-1/9-2 SMV transmission, receiving or GOOSE transmission and reception |
| Interface type |
LC optical port |
| Quantity |
8 pairs, 6 pairs*100M adaptive, 2 pairs *100/1000M adaptive |
| Wave length |
1310nm |
| IEC 60044 communication port |
| Function |
GB/T 20840.8, DL/T 282, Q/GDW441 message receiving and sending |
| Interface type |
ST |
| Quantity |
6*sending interface, 2* receiving interface |
| Phase |
| Range |
0~360° |
| Accuracy |
±0.1° |
| Resolution |
0.1° |
| Frequency |
| Range |
0~1000Hz |
| Accuracy |
<±0.001Hz(0~65Hz)
<±0.01Hz(65~450Hz)
<±0.02Hz(450~1000Hz) |
| Resolution |
0.001Hz |
| Time |
| Range |
10ms ~9999.999s |
| Resolution |
1ms |
| Binary contact input |
| Quantity |
8 pairs, Can be connected to idle contact and with potential contact (0~250V) |
| Binary contact output |
| Quantity |
6 pairs, 2 pairs are fast output |
| Breaking capacity |
DC250V /0.5A |
| Response time |
＜100us |
| Synchronize |
| Interface type |
GPS/BD ANT; IRIG-B/PPS optical signal; IRIG-B/PPS electric signal; IEEE 1588 |
| Quantity |
1*GPS/BD ANT;
2*IRIG-B/PPS optical signal : 1* time synchronization, 1* time giving;
2 pairs*IRIG-B/PPS electric signal :1 pairs *time synchronization, 1 pairs * time giving;
1 pairs* IEEE 1588 |
| Wireless connection |
| Interface type |
WIFI |
| Wired connection |
| Interface type |
100M Lan port , RJ45 |
| Quantity |
2 pieces |
| Analog small signal input |
| Interface type |
Aviation plug, AC voltage |
| Quantity |
12 channel |
| Analog small signal output |
| Interface type |
Aviation plug, AC voltage |
| Quantity |
12 channel |
| Power supply |
| Voltage |
AC/DC 220V , Allowable deviation: -20%~15% |
| Frequency |
47~65Hz |
| USB interface |
| Quantity |
2 pieces |
| Working environment |
| Working temperature |
-10℃~50℃ |
| Humidity |
≤ 95%， non-condensation |
| Others |
| Weight |
5.5 kg |
| Dimension |
146×390×212mm(L×W×H) |
| Online interface |
RJ45 |
| Display |
10.4 inch true color LCD touch screen |
