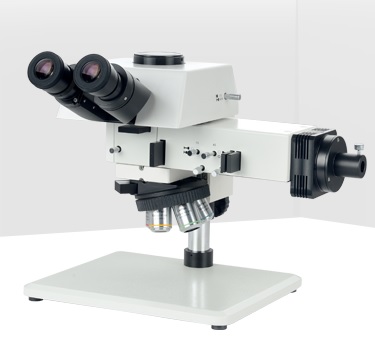

Kính hiển vi phân cực Sunny MXFMS MXFMS-BD

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Kính hiển vi phân cực Sunny MXFMS  MXFMS-BD

Thông tin sản phẩm

Kính hiển vi phân cực Sunny MXFMS  MXFMS-BD


Model

MXFMS

MXFMS-BD

Observation method

Bright field/ Oblique illumination/ Polarizing//DIC

Bright field/Dark field/Polarizing/DIC

Optical system

Infinity color corrected optical system

Eyepiece

High eye-point plan eyepiece PL10X22mm

Objective

OLIP infinity long working distance metallurgical objectives for bright field

OLIPBD infinity long working distance metallurgical objectives for bright field or dark field

Head

30°inclined trinocular head, splitting ratio for binocular: trinocular =100:0 or 50:50,diopter adjustment±5, interpupillary distance 54mm-75mm

25°inclined trinocular positive head, splitting ratio for binocular: trinocular =100:0 or 0:100, diopter adjustment±5,interpupillary distance 54mm-75mm

Nosepiece

Intilted quintuple nosepiece for bright field,with DIC slot.

Intilted quintuple nosepiece for bright field or dark field,with DIC slot.

Base

B5 big flat base, size 320mmX260mmX16mm,post height 280mm,diameterφ32mm

Microscope body

Coaxial coarse and fine adjustment, coarse adjustment distance 32mm,precision of fine adjustment:0.002mm,with tense adjusting device to prevent gliding。

Reflected illumination system

With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with oblique illumination switch.

With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device between bright field and dark field.

Illuminator

15V150W cold halogen lamp, intensity continuously adjustable; single fiber hose(550mm/1000mm/1500mm)

Photo accessory

1/2CTV(focus adjustable), 1xCTV(focus adjustable), digital camera, relay lens

Polarizing/DIC accessory

Polarzer, fixed analyzer/ 360°analyzer, DIC board
