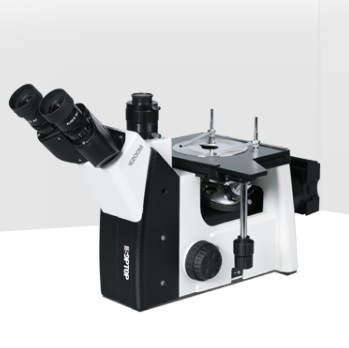

Kính hiển vi soi kim tương ngược Sunny IE200M

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Kính hiển vi soi kim tương ngược Sunny IE200M

Thông tin sản phẩm

Kính hiển vi soi kim tương ngược Sunny IE200M


Optical system

Finity color corrected optical system

Viewing head

Gemel trinocular,45°inclined,Diopter adjustment ±5 for each side,Interpupillary distance adjustable between:54-75mm,refract rate,binocular:trinocular =80%:20%

Eyepiece

High eyepoint wide field plan eyepiece PL10X/18mm

High eyepoint wide field eyepiece WF15X/13

High eyepoint wide field eyepiece WF20X/10mm

Metallurgical objcetive

LWD plan achromatic metallurgical objective 5X,10X,20X,50X、100X

Nosepiece

Reversed quadruple nosepiece

Reversed quintuple nosepiece

Focusing adjustment

Low position coaxial coarse and fine adjustment. with tightness adjustment.Coarse adjustment range 38 mm;precision of fine adjustment:2um,

stage

Three-ply mechanical stage,area 180mmX155mm,right hand low position control,Moving range:75mm×40mm; Metal stage plate,center hole dia.φ12mm

Illumination system

Reflection Koehler illumination with iris diaphragm and centerable field diaphragm , wide-range voltage 90-240V ,6V/30W halogen bulb(single 3W LED option), with continuous intensity

Polarizing kit

Polarizer and the analyzer can be removed from the optical path, the analyzer can be rotated 360 °.

Photo accessories

Photo tube(with PK mount),photo eyepiece 3.2X

Video accessories

CTV0.5X/1.0X

software

specialized metallographic analysis software
