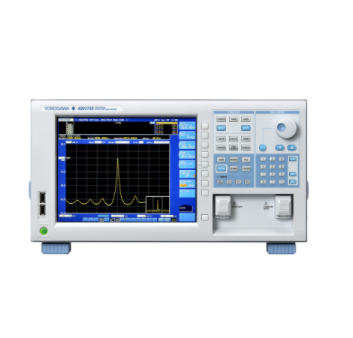

The AQ6375B is a bench-top optical spectrum analyzer covering the long wavelengths, 1200 to 2400 nm, with the added benefits of gas purging input ports / output ports, a built-in cut filter for high order diffracted light, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.
Double Speed Mode to further enhance fast measurement speed
High sensitivity down to -70 dBm
High resolution to 0.050 nm
Wide close-in dynamic range (55dB)
Fast auto-calibration
Free space optical input for maximum flexibility, low maintenance, and high reliability
Long wavelength range: 1200 to 2400 nm
Gas purging ports to reduce water vapor effects
Built-In cut filter for high order diffracted light
Applicable to single-mode and multimode fibers
Excellent performance for environmental gas sensing Laser Spectroscopy
Indispensable tool for R&D and manufacturing of optical devices in the wavelength range from telecom band to 2.4μm
Long Wavelength Range: from 1200nm to 2400nm
The AQ6375B covers not only the wavelength span used in communications, but also the 2µm region which is used for environmental sensing, medical, biology and industrial applications.
High Sensitivity: down to -70dBm
The AQ6375B can measure optical power from +20dBm down to -70dBm thanks to its high-dynamic and very low noise components and circuits used for photo detection. This enables precise measurements of both high power and low power sources.
Measurement sensitivity can be chosen among 7 values according to the measurement speed required by the specific test to be performed.
