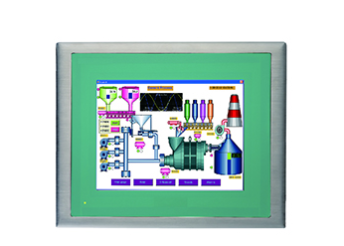

Màn hình giao diện HMI 1050 Brainchild

Mã sản phẩm: HMI 1050 |
Thương hiệu: Brainchild
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Màn hình giao diện
Model: HMI 1050
Hãng: Brainchild

Thông tin sản phẩm
- SmartPanels are new Human Machine Interface (HMI) / Operator Interfaces, WinCE 6.0, LED technology, Wide panels, higher resolution, and four sizes in 4.3”, 7”, 10” & 15”. Ethernet, USB host, 2 Serial ports, SD, Audio input/output. Extensive connectivity to MPI/Profibus-DP, ProfiNet, DeviceNet, EtherNet/IP. CANopen,BACnet/IP & CC-Link. Metal/Stainless steel enclosures for rugged environments. Vertical/Horizontal installation. IP66K for Food, Beverage, Pharma and Oil & Gas.
- Six models in four sizes of 4.3”, 7”, 10” & 15”
- Two low-cost models HMI 450 & 730 with optional Ethernet and SD slot, three high-performance HMI 750, 1050, 1060 (wide screen) & 1550 with standard Ethetnet and SD slot.
- Touch panels, higher resolution and all in 65536 colors
- USB host, 2 Serial ports.
- Net works of Profibus-DP, ProfiNet, DeviceNet & EtherNet/IP, CANopen, CC-Link.
- Advenced and reliable WinCE 6.0 platform with more features for efficient and sophisticated control solutions
- HMI 750, 1050, 1550 standard aluminum front bezels, optional stainless steel fronts for food, beverage, pharmaceutical industries
- Rugged stainless steel front bezels with IP66K for high protection on dust & water, and polished surface for easy cleaning
- Large memory of 128 MB Flash, 256MB SDRAM, sound input + output, 3DI + 3DO
- USB Host port used for Keyboard, USB stick and mouse
- Horizontal or vertical installation and display
- Wide range of power supply 11-36 VDC or 90-250 VAC
- LED backlight for even-color displays and long lifetime
- Open WinCE 6.0 Core & Professional panels for OEM business
