Thông tin sản phẩm

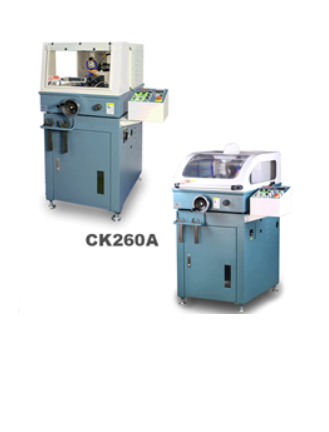

Model : CK260 | CK360 | CK460
- Vise Travel : 260mm 260mm | 360mm 360mm | 460mm
- Motor Power : 3HP 5HP | 5HP 7.5HP | 10HP
- Cutting Capacity : Appendix 1、Appendix 2、Appendix 3、Appendix 4
- Cutting Chamber : Appendix 5
- Abrasive Wheel (Diameter & Arbor) : Ø 305 × Ø 31.75(Ø 32) | mm Ø 406 × Ø 32mm
- Flange Diameter : Ø 85 | Ø 85 & Ø 100
- Rotational Speed : 2500RPM(60Hz) / 2100RPM(50Hz)
- Vise : Dual quick push clamp vise
- Vise Dimension (WxH) : 100mm x 60mm | 150mm x 60(85)mm | 200mm x 60(85)mm
- Movement in X-axis : 45mm
- Noise Level (idling) : 68~72dB 68~72dB | 70~75dB 70~75dB | 70~78dB
- Pump Motor Power : 1/4HP Thee phases
- Recirculation Cooling System : 100L | 120L
- Machine Dimension (WxDxH) : 105 x 110 x 155cm | 105 x 125 x 162cm | 105 x 145 x 162cm
- Machine Weight : 358Kg 365Kg | 454Kg 476Kg | 503Kg
