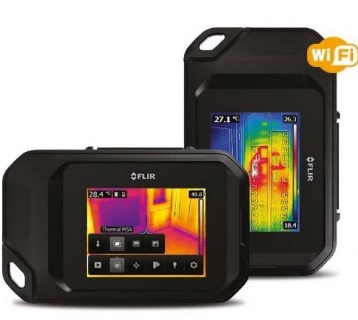

Máy chụp ảnh nhiệt, Camera nhiệt hồng ngoại FLIR C3

CONNECTIONS & COMMUNICATIONS

Storage Media

Internal memory, at least 500 sets of images

USB 2.0

USB Micro-B connector type: data transfer to and from PC

WiFi

Peer-to-peer (ad hoc) or infrastructure (network)

ENVIRONMENTAL

Emissivity Correction

Yes; matte/semi-matte/semi-glossy + custom value

Operating Temperature Range

–10°C to 50°C (14°F to 122°F)

Storage Temperature Range

–40°C to 70°C (-40°F to 158°F)

IMAGING & OPTICAL

Auto orientation

Yes

Color palettes

Iron, Rainbow, Rainbow HC, Gray

Digital Camera

640 x 480 pixel

Digital Camera Focus

Fixed focus

Field of view (FOV)

41°x 31°

Image Frequency

9 Hz

Image Modes

Thermal, visual, MSX®, Picture-in-Picture

Minimum Focus Distance

Thermal: 0.15 m (0.49 ft) MSX®: 1 m (3.3 ft)

Non-radiometric IR video streaming

Yes

3 inch Display (color)

320 x 240 pixels

Image Gallery

Yes

MSX

Adds visual details to full resolution thermal image

Thermal Image

Yes

Visual Image

Yes

Visual Video Streaming

Yes

MEASUREMENT & ANALYSIS

Accuracy

±2°C (±3.6°F) or ±2%, whichever is greater, at 25°C (77°F) nominal

Area

Box with max. or min.

Frequency Range

2400-2480 MHz 5150-5260 MHz

Measurement Corrections

Emissivity, Reflected apparent temperature

Object Temperature Range

-10°C to 150°C (14°F to 302°F)

Spot Meter

On/Off

Thermal Sensitivity/NETD

< 0.10°C

POWER

Battery

3.7 V Rechargeable Li-ion polymer battery

Battery operating time

2 hours

Battery type

Rechargeable Li-ion polymer battery

Charging system

Charged inside camera

Charging Time

1.5 hours

External Power Operation

AC adapter, 90-260 VAC input - 5 V output to camera

Power Management

Automatic shut-down

SHIPPING INFORMATION

Box Contents

Infrared camera, lanyard, pouch, power supply/charger, tripod mount, USB cable, printed documentation

STORAGE MEDIA

Image File Format

Standard JPEG with 14-bit measurement data included
