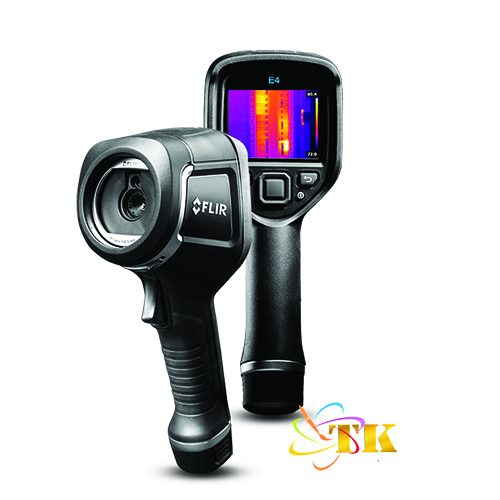

Máy chụp ảnh nhiệt, Camera nhiệt hồng ngoại FLIR E4

COMPLIANCE & CERTIFICATIONS

Certifications

UL, CSA, CE, PSE and CCC

CONNECTIONS & COMMUNICATIONS

AC Operation

AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface

USB Micro: Data transfer to and from PC and Mac device

ENVIRONMENTAL

EMC

•WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range

–15°C to 50°C (5°F to 122°F)

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 70°C (–40°F to 158°F)

Vibration

2 g (IEC 60068-2-6)

Emissivity table/correction

Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop

IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

Camera size (L x W x H)

244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery

0.575 kg (1.27 lb.)

Color

Black and gray

Color palettes

Black & white, iron, and rainbow

f-number

1.5

Field of view (FOV)

45° x 34°

Focus

Focus free

Image Adjustment

Automatic adjust/lock image

Image Frequency

9 Hz

Image Modes

Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera

Minimum Focus Distance

0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX)

IR image enhanced with visible camera detail

Spatial resolution (IFOV)

10.3 mrad

Digital Camera Resolution/FOV

640 × 480/55° × 43°

MEASUREMENT & ANALYSIS

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Object Temperature Range

–20°C to 250°C (–4°F to 482°F)

Reflected apparent temperature correction

Automatic, based on input of reflected temperature

Thermal Sensitivity/NETD

<0.15°C (0.27°F) / <150 mK

Spotmeter and Area

Center spot; box with min./max.

METER DATA

Display

3.0 in. 320 × 240 color LCD

POWER

Charging system

Battery is charged inside the camera or in specific charger.

Charging Time

2.5 hours to 90% capacity in camera. 2 hours in charger.

Power Management

Automatic shut-down

Battery type & operating time

Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use

STORAGE MEDIA

File Formats

Standard JPEG, 14-bit measurement data included
