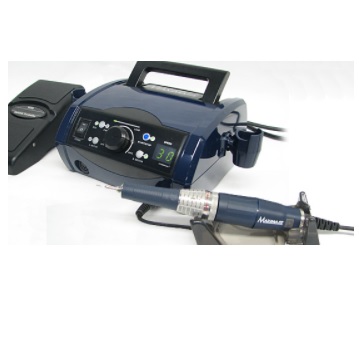

Máy đánh bóng ARGOFILE MAXIMA EX

EX051

Rotary Handpiece Two-piece construction

55,000rpm / High Speed
Rated input voltage : 0-30V.DC
Max torque : 3.6 N.cm
Weight : 190 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX121

Rotary Handpiece Two-piece construction

20,000rpm / High Torque
Rated input voltage : 0-30V.DC
Max torque : 6.4 N.cm
Weight : 220 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX131

Rotary Handpiece Two-piece construction

35,000rpm / All-Arounder
Rated input voltage : 0-30V.DC
Max torque : 5.4 N.cm
Weight : 220 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX201

Rotary Handpiece Two-piece construction

8,000rpm / Super Torque
Rated input voltage : 0-30V.DC
Max torque : 9.8 N.cm
Weight : 276 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX211

Rotary Handpiece Two-piece construction

15,000rpm / High Torque
Rated input voltage : 0-30V.DC
Max torque : 8.8 N.cm
Weight : 276 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX231

Rotary Handpiece Two-piece construction

30,000rpm / All-Arounder
Rated input voltage : 0-30V.DC
Max torque : 6.8 N.cm
Weight : 276 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX05

Motors 55,000 rpm
Rated input voltage : 0-30V.DC
Max torque : 3.6 N.cm
Weight : 90 g

EX12

Motors 20,000 rpm
Rated input voltage : 0-30V.DC
Max torque : 6.4 N.cm
Weight : 120 g

EX13

Motors 35,000 rpm
Rated input voltage : 0-30V.DC
Max torque : 5.4 N.cm
Weight : 120 g

EX20

Motors 8,000 rpm
Rated input voltage : 0-30V.DC
Max torque : 9.8 N.cm
Weight : 176 g

EX21

Motors 15,000 rpm
Rated input voltage : 0-30V.DC
Max torque : 8.8 N.cm
Weight : 176 g

EX23

Motors 30,000 rpm
Rated input voltage : 0-30V.DC
Max torque : 6.8 N.cm
Weight : 176 g

EX217

Angle Rotary

Suitable for polishing of round and flat surface. The handpiece EX217 consists of head JS21 and motor EX21.
The detachable motor EX21 can be used with interchangeable heads.

Rated input voltage : 0-30V.DC
Max shaft output : 49.0W
Max torque : 8.8N.cm
Weight : 380 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX216

Angle Rotary

Suitable for polishing of round and flat surface. The handpiece EX216 consists of head JR21 and motor EX21.
The detachable motor EX21 can be used with interchangeable heads.

Rated input voltage : 0-30V.DC
Max shaft output : 49.0W
Max torque : 8.8N.cm
Weight : 370 g
Standard collet size : 2.35 mm, 3.0 mm
Special collet size : 3.175 mm

EX208

Swingfile / 8,000 rpm

Swingfile EX208 a unique sideways reciprocating action with a choice of speed and stroke is perfect for polishing base areas in deep cavities, corners and deep slots. The handpiece EX208 consists of head JP11 and motor EX20. The detachable motor EX20 can be used with interchangeable heads.

Rated input voltage : 0-30V. DC
Max torque : 9.8 N.cm.
Available tool size : 2.0 – 4.7 mm diameter.
Weight : 316 g

RE35

Reciprofile
RE35 reciprocating profilers are light-weight and comfortable
handpieces for continuous polishing. Both models have adjustable stroke and floating head with 360 degrees orientation.

Rated input voltage : 0-30V. DC
Available tool size : 2.0 – 6.35 mm diameter.
Reciprocating Stroke : 0 – 6 mm
Frequency : 420 – 4,200 strokes/min.
Weight : 675 g

RE55

Reciprofile
RE55 reciprocating profilers are light-weight and comfortable
handpieces for continuous polishing. Both models have adjustable stroke and floating head with 360 degrees orientation.

Rated input voltage : 0-30V. DC
Available tool size : 2.0 – 6.35 mm diameter.
Reciprocating Stroke : 0 – 2mm
Frequency : 700 – 7,000 strokes/min.
Weight : 675 g

BS33

Belt Sander

Suitable for deburring, removing EDM and machine tool marks, and sanding flat and curved surface and narrow slots.

Rated input voltage : 0-30V.DC
Belt Speed : 5 – 12 m/sec.
Weight : 400 g
