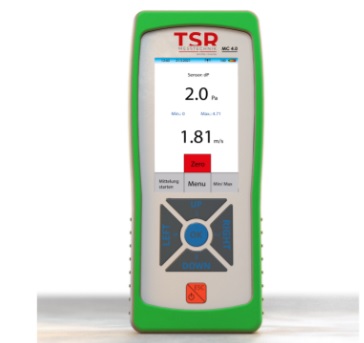

Máy đo áp suất TSR MC 4.0 ManoAir
The ManoAir 4.0 is suitable for measuring absolute and differential pressure and is used in process, process and medical technology, in plant construction and power, gas and waterworks, in waste incineration and HVAC systems, mechanical engineering, chemical and petrochemical industries , Automotive industry.
The manometer can be equipped with two pressure modules to cover different measuring ranges:
Measuring range +/- 2000 Pa
Measuring range +/- 20 kPa
ManoAir 4.0 Mod. 1 100% measuring range resolution Measurement accuracy ± 2000 Pa 1 Pa <100 Pa ± 3 Pa + ± 0.10% o.r. > 100 Pa ± 10 Pa + ± 0.10% o.r.
ManoAir 4.0 Mod. 2 100% measuring range resolution Measurement accuracy ± 20 kPa 0.01 kPa <100 Pa ± 0.03 kPa + ± 0.10% o.r. > 100 Pa ± 0.01 kPa + ± 0.10% o.r.
• Selectable units of measurement for pressure: Pa / kPa, mbar, mmH2O
• Display of rate of flow in m/s per keystroke
• Mean, minimum and maximum values per keystroke
• Automatic temperature compensation of the pressure sensor
• Logger function as standard
