| Measuring Principle |
Fe: magnetic: magnetic field amendment/ hall-effect
NFe: Eddy current
|
| Standrds |
DIN EN ISO 2808, DIN 50981, DIN 50984, ISO 2178, BS 5411 (3&11), BS 3900 - C5, ASTM B 499, ISO 2360, ASTM D 1400, ASTM D 1186, ASTM D 7091 |

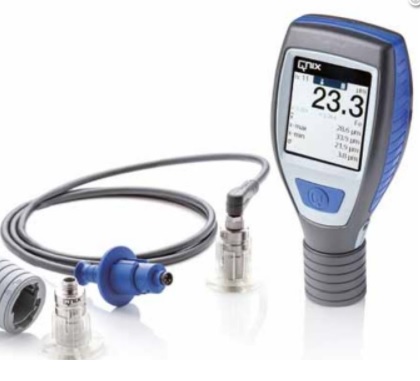

| Probe type |
Integrated or with cable |
| Measuring range |
depending of the probe type, max: Fe: 0,0–5000 μm | NFe: 0,0–5000 μm |
| Units μm/mm |
Yes |
| Sampling rate |
500 msmeasurement |
| Protection type |
IP65 |
| Operating temperature |
max. 70 C. |
| Accuracy |
±(1 μm + 2%*) in the 0,00–1999 μm measuring range
±3 % over 2 mm |
| Minimal measuring surface (in mm x mm) |
min. 14.5mm in diameter |
| Smallest curvature |
konvex Fe: 6 mm, konvex NFe: 50 mm |
| Minimum thickness of the base metal |
Fe: 0,1 mm | NFe: 0,05 mm |
| Display |
LCD |
| Operating temperature |
-20 – 70°C |
| Storage temperature |
-20° C – 70°C |
| Batteries |
2x1.5V (AA type) |
| Dimensions (L x l x I in mm) |
136 x 63 x 42 |
| Weight |
aprox. 132 g |
