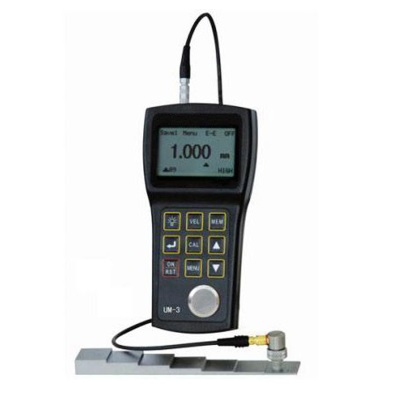

Máy đo chiều dày siêu âm AERMANDA UM-3, UM-3D, UM-3DL
Specifications
Operating Principle
I-E(interface-echo)mode with single-crystal delayed probe
E-E(echo-echo)mode with single-crystal delayed probe
Measuring Range
1.5-20mm (I-E mode)
0.3-10mm (E-E mode)
Unit and Display Resolution
mm-0.001, 0.01, 0.1
inch-0.0001, 0.001, 0.01
Probe Zero Adjustment
1-point Calibration
2-point Calibration
Measuring Error
±0.005mm(above 3mm) ±0.05mm (below20mm)
Display
128×64 dot-matrix LCD screen with EL backlight (42mm×57mm)
Measuring Update Rate
4Hz in standard measurement mode
Materal Velocity Range
1000-9999m/s, 0.0394-0.3937in/us
Data Logger Capacity
