Máy đo chiều dày siêu âm AERMANDA UM-5, UM-5D, UM-5DL

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo chiều dày siêu âm AERMANDA UM-5, UM-5D, UM-5DL

Thông tin sản phẩm

Máy đo chiều dày siêu âm AERMANDA UM-5, UM-5D, UM-5DL


Specifications
Pulse echo with dual element transducers
Measuring Range
0.5 to 508mm(0.02" to 20.00"),
depending on probe,material and surface condition
Unit and Display Resolution
mm-0.01, 0.1
inch-0.001, 0.01
Display Mode
Normal
A-Scan
B-Scan
Max./Min.Capture
DIFF/RR%
V- Path Correction
Automatic
Measuring Error
±0.05mm  (25mm below)
±0.2% H  (100mm above)
±0.5% H  (100mm above)
H is the height of testing object
Repeatability
±0.05mm
Display
2.4" color OLED, 320 X 240 pixels
Measurement Update Rate
Selectable4Hz, 8Hz, 16Hz

Velocity Range
500-9999m/s, 0.0197-0.3937in/us
Operating Language
Chinese,English,Japanese (Selectable)
Power Supply
Two 1.5V  AA batteries
Operating Time
Two 1.5V  AA batteries, Approximately 36 hours.
Auto Shut-off
After 5,10,20 minutes of non-action period

Working Temperature
-10ºC-+50ºC, available for as low as -20ºC on request
Size
153mm×76mm×37mm (H×W×D)
Weight
280g including batteries

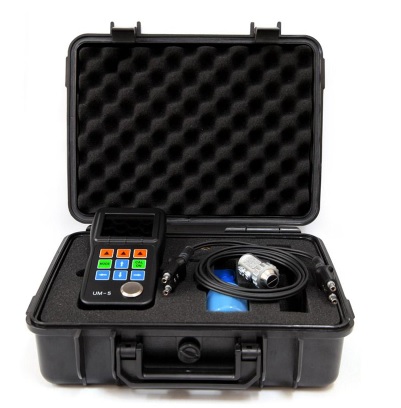

Standard Package

UM-5 thickness gauge unit
Standard Probe (PT-08)
Carrying Case
Couplant (Empty Bottle)
Operating Mannual
Optional Accessories
Numerous special probes; step calibration;
Couplant and Hight temperature Couplant
