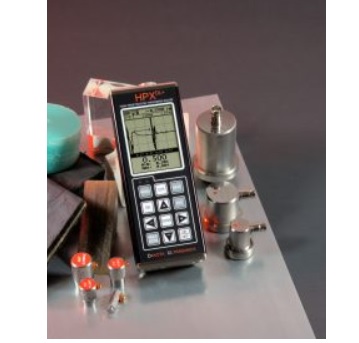

Máy đo chiều dày siêu âm chính xác cao Dakota HPX DL+

Máy đo chiều dày siêu âm chính xác cao Dakota HPX DL+

Máy đo chiều dày siêu âm chính xác cao Dakota HPX DL+

MEASURING

*dependent on material type and consistency.

Range:

• Pulse-Echo Contact: Steel .050 in. – 100.0 ft. (1.27 mm – 30.5 M). Composites .100 in. – 5.00 in. (2.54 mm – 127 mm).
• Echo-Echo Contact: Steel .100 in.–3.0 ft. (2.54 mm–91.44 cm).
• Echo-Echo Verify Contact: Steel .100–6.0 in. (2.54–152.4 mm).
• Resolution (selectable): +/- .01 inch (0.1 mm). +/- .001 inch (0.01 mm).
• Velocity Range: 0.0122 to 0.7300 inches/µs 309.88 to 18542 meters/sec.
• Single and Two point calibration option, or selection of basic material types.
• Units: English & Metric

DISPLAY

Display Views:

• A-Scan: Rectified +/- (flaw view) RF (full waveform view). Refresh rate at 25 Hz.
• B-Scan: Time based cross section view. Display speed variable (10 to 200 readings per second).
• Large Digits Standard thickness view. Digit Height: 0.700 in (17.78 mm).
• Scan Bar: Speed 10 Hz. Viewable in B-Scan and Large Digit views.
• Bar Graph: Measurement stability.
