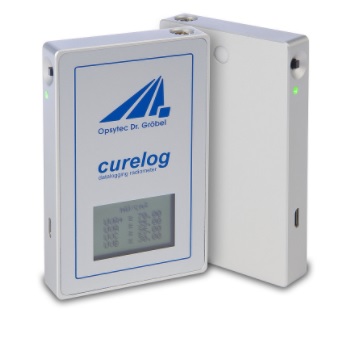

Máy đo cường độ tia cực tím UV Opsytec curelog ONE, LED, PRO

Máy đo cường độ tia cực tím UV Opsytec curelog ONE, LED, PRO

The curelog ONE is a entry level version that measures one spectral range and is the cheapest version
The curelog LED is adapted for LED measurements at the wavelengths 365 nm, 385 nm, 395 nm, 405 nm and 450 nm. The curelog LED also records UV radiation.
The curelog PRO measures UVA, UVB, UVC and VISB according to the international CIE classification.
TECHNICAL DATA CURELOG DOSE METER
Irradiance meas. range 0,0001 - 25000 mW/cm²
Dose range 0,0001 mJ/cm² - 6 MJ/cm²
Resolution 0,0001 mWcm² / mJ/cm²
Calibration traceable to PTB / NIST
optional ISO 17025
Sampling rate 1 Hz to 2000 Hz, adjustable
Recording time 180 h to 5 min, depending
on the time resolution
Memory 64 MBit
AD conversion 24 bit precision ADC
Display graphical, 128 x 64 px
Dimensions 62,5 x 100 x 14 mm³
Sensor position backside
