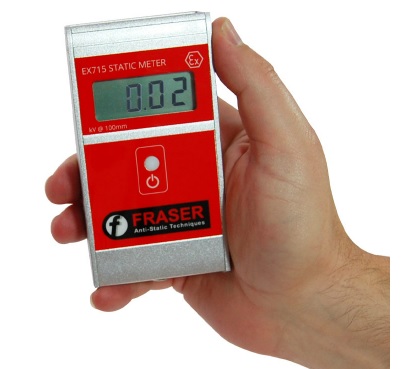

Construction
Anodised aluminium case with recessed stainless steel sensing plate for maximum integrity and accuracy.
Dimensions
124 x 64 x 24 mm (H x W x D).
Weight
180 g.
Range / Resolution
0 V - 20 kV / 10 V increments and 20 kV - 200 kV / 100 V increments. Automatic range selection. Measurement at 100 mm.
Drift
<0.1 % in 10 secs.
Calibration
On a 150 mm x 150 mm charge plate. Can be calibrated on other charge plate sizes to meet country standards e.g. 450 mm x 450 mm for China.
Operation
Click button to zero. Click button again to ‘hold’ the reading. Third press reactivates reading. Automatic switch-off after 60 seconds. Low volt indicator shows condition of battery.
Equipment
EX static meters are supplied with carrying case, battery, earth lead and certificate of calibration.
Environmental
70 % rH non-condensing max.
Certification
In addition to ATEX and IECEx, EN-500081-1 (EMC) and BS7506-2 (Construction).
