A Digital Enable connection permits remote ON/OFF measurement capability. An automatic gain control feature of the 370TR eliminates the need for manual adjustment when changing probes or when changing the probe to measured surface separation. The 370TR also features one-step, push-button zeroing. When the ZERO button on the front panel is pressed, the 370TR automatically adjusts the output to zero volts when the probe is coupled to a known zero volt surface.

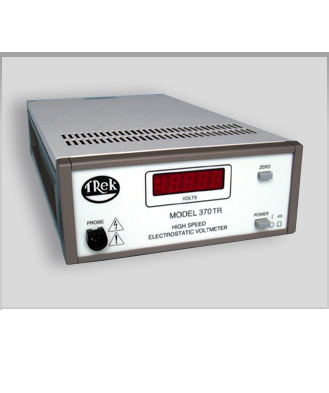

The Trek Model 370TR is a precision electrostatic voltmeter with the unique capability of making noncontacting surface voltage measurements in the range of 0 to ±3 kV DC or peak AC.
The 370TR employs an electrostatic field-nulling technique which achieves high DC stability and high measurement accuracy even if the probe to measured surface spacing changes. This permits measurements of either stationary or moving surfaces without the need to establish fixed spacing to maintain accuracy.
The Model 3629A Transparent probe permits light to pass through the probe to provide simultaneous radiation and measurement of a surface. This is useful for photosensitive surface studies such as ‘time of flight’ measurements of photoconductor surfaces.
A precision voltage monitor provides a low-voltage replica of the measured electrostatic voltage for external monitoring purposes, or for use as a feedback signal in a closed-loop system.
