Máy đo điện trở cách điện Chauvin AEMC 6505, 5050, 5060, 5070

Máy đo điện trở cách điện Chauvin AEMC 6505, 5050, 5060, 5070

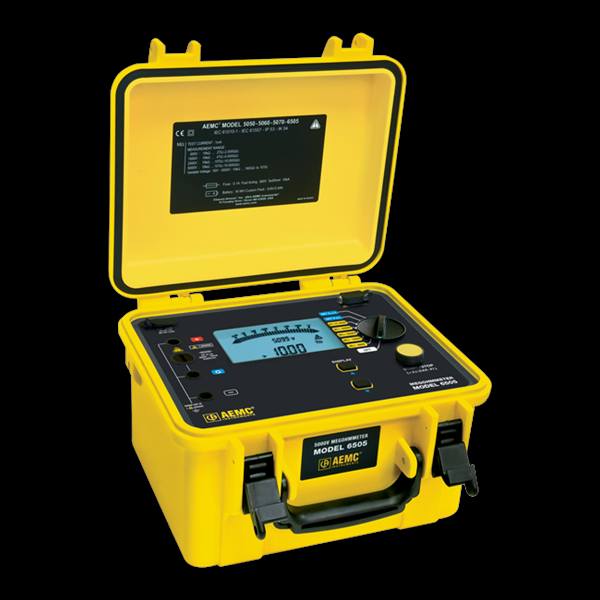

• Megohmmeter Model 6505

  Cat. #2130.18
  Digital, Analog Bargraph, Backlight, 500V, 1000V, 2500V, 5000V, Auto DAR/PI
  Measures voltage, insulation, and capacitance. Displays test voltage, insulation resistance, and leakage current during the test; and capacitance and discharge voltage present at the test leads at the conclusion of the test. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI). Prevents test voltages to be generated if a live sample is detected.

•

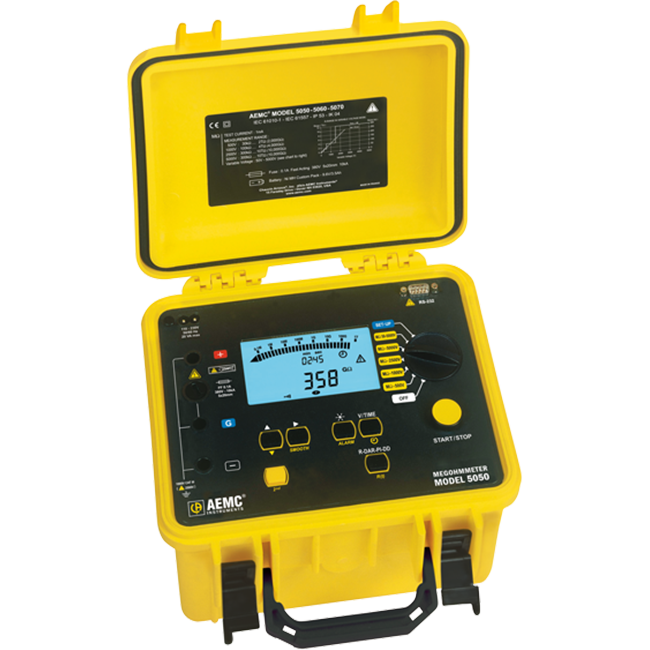

  Megohmmeter Model 5050

  Cat. #2130.20
  Digital, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Auto DAR/PI/DD
  Displays test voltage, insulation resistance, and leakage current during the test; and capacitance and discharge voltage present at the test leads at the conclusion of the test. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI).

•

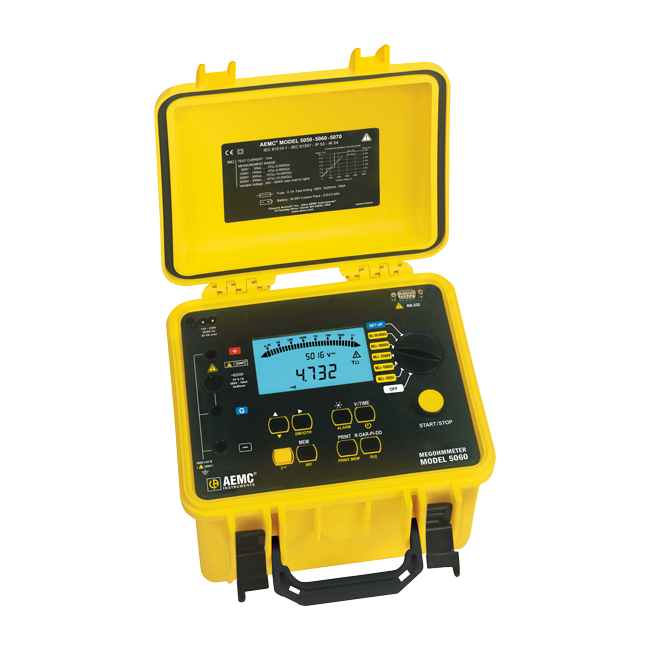

  Megohmmeter Model 5060

  Cat. #2130.21
  Digital, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Auto DAR/PI/DD, RS-232 w/DataView® Software
  Displays test voltage, insulation resistance, and leakage current during the test; and capacitance and discharge voltage present at the test leads at the conclusion of the test. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI). RS-232 interface allows connection to a computer running DataView® for configuring the instrument, and downloading test results and generating reports.

•

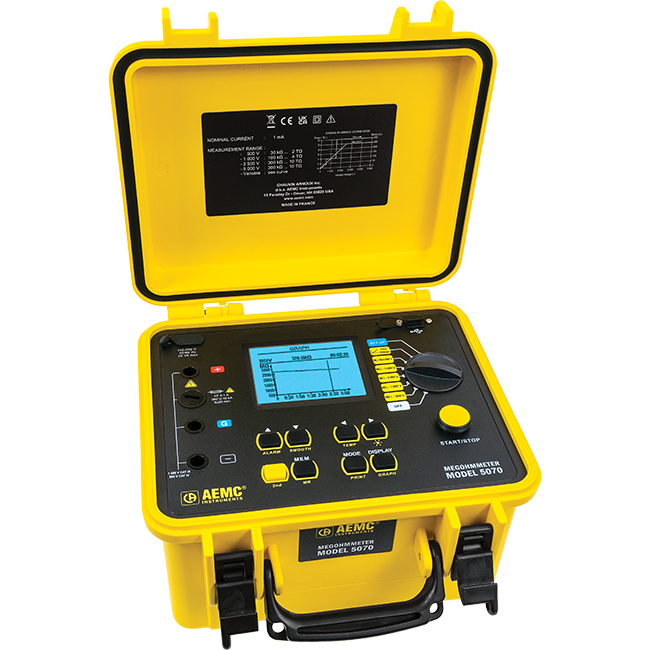

  Megohmmeter Model 5070

  Cat. #2130.30
  Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Ramp, Auto DAR/PI/DD, RS-232 w/DataView® Software
  Fully automated 5000V graphical insulation tester. Selectable and programmable test voltage (40 to 5100V). Programmable temperature correction of resistance readings. Allows programming up to three step voltage profiles, each containing up to five steps. RS-232 interface allows connection to a computer running DataView® for configuring the instrument and downloading test results and generating reports.
