Máy đo điện trở cách điện Chauvin AEMC 6522, 6524, 6526, 6532, 6534, 6536

Máy đo điện trở cách điện Chauvin AEMC 6522, 6524, 6526, 6532, 6534, 6536

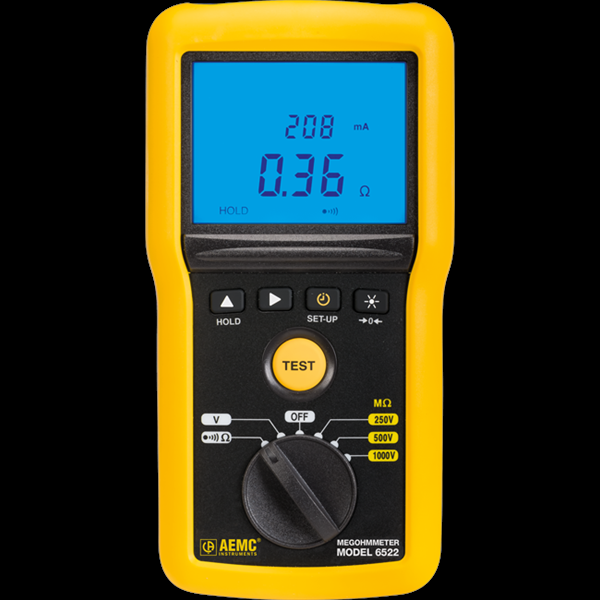

• Megohmmeter Model 6522

  Cat. #2155.51
  Digital w/Analog Bargraph, 250V, 500V, 1000V, Continuity, V
  Insulation and continuity tester featuring three test voltages (250V, 500V, and 1000V) for insulation resistance testing up to 40GΩ, and continuity tests at 200mA. Timed Test Mode enables insulation testing up to 40 minutes. Supports optional Remote Probe accessory. Complies with International Insulation Testing Standards including IEC/EN 61557.

•

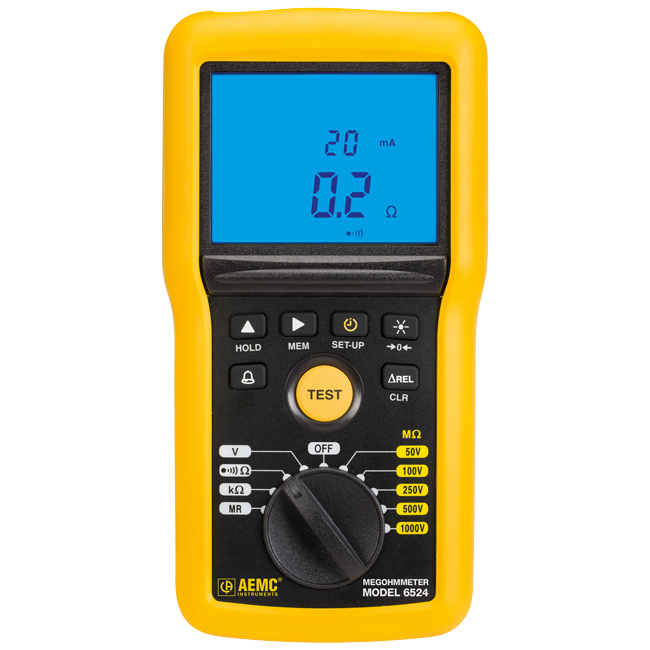

  Megohmmeter Model 6524

  Cat. #2155.52
  Megohmmeter Model 6524 (Digital w/Analog Bargraph, Alarm, 50V, 100V, 250V, 500V, 1000V, Ohm, Continuity, V, kΩ, Mem)
  Multi-function tester for measuring insulation resistance up to 200GΩ, with test voltages of 50V, 100V, 250V, 500V, and 1000V. Automatically calculates DAR and PI ratios. Provides Timed Test Mode for tests up to 40 minutes. Also measures resistance, continuity, frequency, and voltage. Includes memory for storing up to 300 measurements. Complies with International Insulation Testing Standards including IEC/EN 61557, and is rated 600V CAT IV.

•

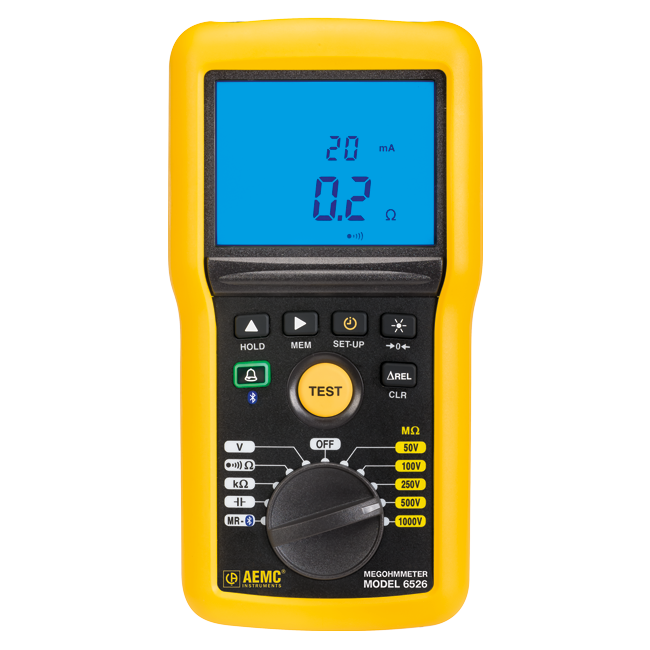

  Megohmmeter Model 6526

  Cat. #2155.53
  Digital w/Analog Bargraph, Alarm, 50V, 100V, 250V, 500V, 1000V, Ohm, Continuity, V, kΩ, Cap, Mem, Bluetooth w/DataView® Software
  Multi-function tester for measuring insulation resistance up to 200GΩ, with test voltages of 50V, 100V, 250V, 500V, and 1000V. Also measures resistance, capacitance, continuity, frequency, and voltage. Includes memory for storing up to 1300 measurements. Bluetooth allows connection to a computer running DataView®. Complies with International Insulation Testing Standards including IEC/EN 61557, and is rated 600V CAT IV.

•

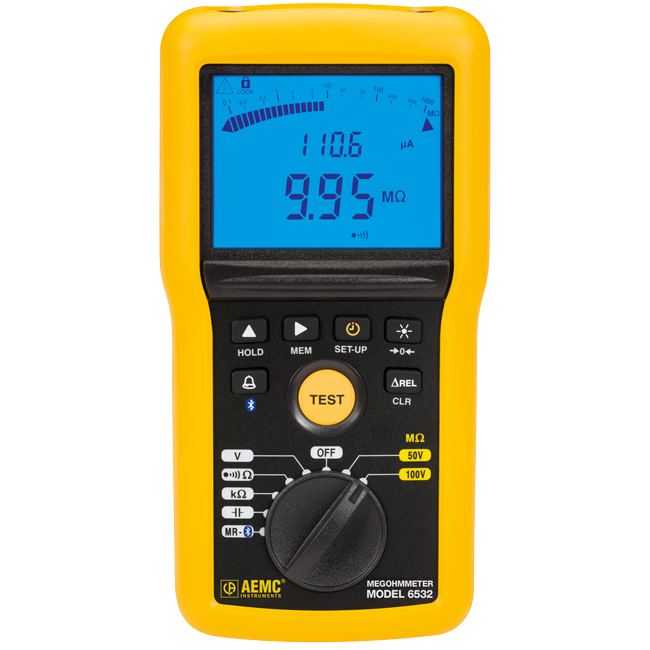

  Megohmmeter Model 6532

  Cat. #2155.54
  Digital w/Analog Bargraph, Alarm, 50V, 100V, Ohm, Continuity, V, kΩ, Cap, Mem, Bluetooth w/DataView® Software
  Multi-function tester for measuring insulation resistance up to 20GΩ, with test voltages of 50V and 100V. Also measures resistance, capacitance, continuity, frequency, line length, and voltage. Includes memory for storing up to 1300 measurements. Bluetooth allows connection to a computer running DataView®. Complies with International Insulation Testing Standards including IEC/EN 61557, and is rated 600V CAT IV.

•

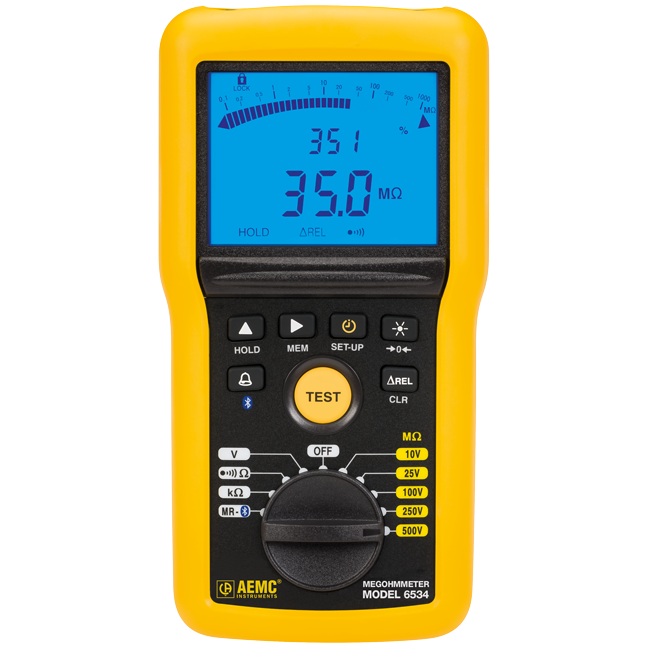

  Megohmmeter Model 6534

  Cat. #2155.55
  Digital w/Analog Bargraph, Alarm, 10V, 25V, 100V, 250V, 500V, Ohm, Continuity, V, kΩ, Mem, Bluetooth
  Multi-function tester for measuring insulation resistance up to 50GΩ, with test voltages of 10V, 25V, 100V, 250V, and 500V. Also measures resistance, continuity, and voltage. Includes memory for storing up to 1300 measurements. Bluetooth allows connection to a computer running DataView®. Complies with International Insulation Testing Standards including IEC/EN 61557, and is rated 600V CAT IV.

•

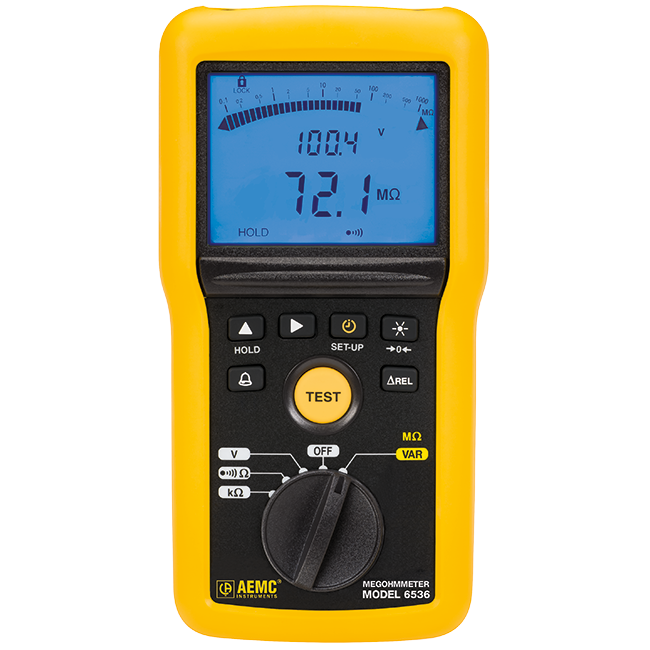

  Megohmmeter Model 6536

  Cat. #2155.56
  Digital w/Analog Bargraph, Alarm, Variable 10V to 100V, Ohm, Continuity, V, kΩ
  Multi-function tester for measuring insulation resistance up to 20GΩ, with variable test voltages (10 to 100V). Provides Timed Test Mode for testing up to 40 minutes. Also measures resistance, continuity, and voltage. Complies with International Insulation Testing Standards including IEC/EN 61557, and is rated 600V CAT IV.
