Item Model
|

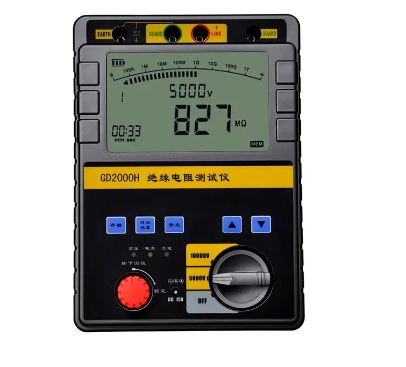

GD2000H
|
|
Output voltage
|
5kV DC
|
10kV DC
|
|
Accuracy
|
Temperature
|
23℃±5℃
|
|
Insulation resistance
|
5M ~ 100G
±5%
|
10M ~ 200G
±5%
|
|
Other range: ±10％
|
|
Output voltage
|
40M ~ 200G
0 ~ +10%
|
80M-400GΩ
0 --+10％
|
|
Short-circuit current
|
≥3.5mA
|
|
Power supply
|
8 * AA type high capacity rechargeable battery & external adapter
|
|
Working Temp.& Humidity
|
-10℃--40℃,max.relative humidity 85％
|
|
Storage Temp.& Humidity
|
-20℃--60℃,max.relative humidity 90％
|
|
Insulation
|
Max.20000MΩ when voltage between circuit and shell is 1000VDC.
|
|
Withstand voltage
|
Withstand 1min when voltage between circuit and shell is 3kV /50Hz AC
|
|
Dimension
|
230mm*190mm*90mm (L*W*H)
|
|
Weight
|
3kg
|
|
Accessories
|
Test leads, manual, rechargeable adapter, power cable, test report
|
